OUTDOOR LED WALL LIGHTS

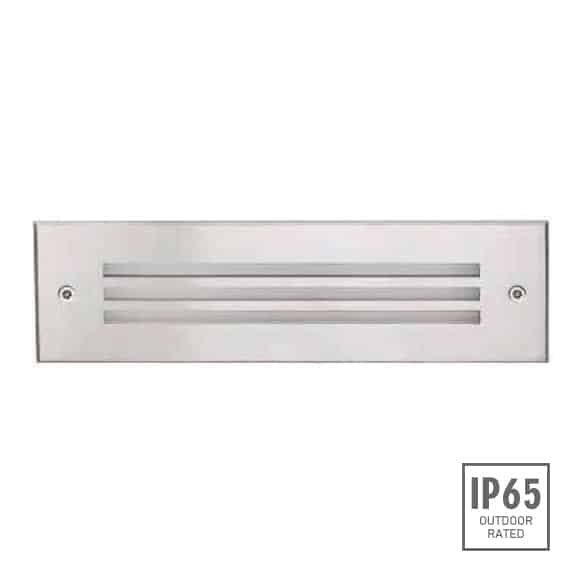

Outdoor LED Wall Lights - D1BC5407


Architectural wall lights for high end prestigious projects in Taiwan. Stainless steel front cover to avoid corrosion. These lights have a high load bearing capacity with IK10 rating. LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattages for these lights can be 5.3W for 24v & 6.8w for 240V variant. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for these wall lights to form uniform lighting effects. Triac & PWM dimming options available. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 2000K, 3000K and 6000K. Stunning designs, IP65, symmetrical lens. High quality outdoor LED wall lights for architectural lighting projects.

  • Compare us with the best outdoor lighting manufacturer before buying the products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: D1BC5407


    Housing & Front Cover:
    12# Die-casting grey powder coated aluminium T=60-80um, Adhesion of ISO class 1/ASTM class 4B, Hard Chrome stainless steel 316#
    Light Window:
    PC T=3mm
    Cable Gland:
    IP68 PG-9 PA66
    Gasket:
    Molding Shaped silicone seal
    LED Driver:
    Constant voltage Input, Constant current output
    Operating Temperature:
    -20⁰C-40C⁰
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m (Low Voltage) H05RN-F 3X1.0mm2 L=0.5m (High Voltage)
    Mounting Sleeve:
    ABS 074#
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali

    TECHNICAL DATA

    Model#Light Source Input VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    D1BC540754xSMD283524V DC | 120V | 240V24V=220 | 120V=95 | 240V=6224V=5.3 | 120V=6.7 | 240V=6.8Cool White = 107 | Warm White = 9010

    IP68 WATERPROOF CONNECTORS

    Architectural outdoor wall lights are with Stainless steel front cover to avoid corrosion. These lights have a high load bearing capacity with IK10 rating. LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattages for these lights can be 5.3W for 24v & 6.8w for 240V variant. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for these wall lights to form uniform lighting effects. Triac & PWM dimming options available.

    Housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K. Stunning designs, IP65, symmetrical lens. Premium quality wall lights for commercial lighting projects in Taiwan. Architectural wall lights for high end prestigious projects in Taiwan. Stainless steel front cover, Triac & PWM dimming & IK10 rating

    Similar products: Outdoor LED Wall Lights

    Architectural outdoor wall lights for modern outdoor wall lighting, landscape lighting, garden lights & deck step lighting with 40+ designs. Our LED wall lights are perfect for illuminating your garden or patio. They come in a variety of styles to suit any décor. Whether you’re looking for recessed wall lights or surface-mounted wall lamps, we have a light to fit your needs.

    These outdoor wall lights give your wall a smooth, flush finish. Over 40+ designs of exterior wall lights available for various recessed wall lighting applications. Using them as brick lights can give your wall a beautiful texture. These recessed garden wall lights come in standard color temperatures of 2000K/2700K/3000K/3500K/4000K/5000K & 6000K with multiple dimming options.

    These are waterproof outdoor wall lights that can change the ambience of any outdoor area. The position of the LED offers a soft and comfortable light effect with superior performances. Our  waterproof outdoor wall lights are particularly suitable for recessing into stone walls and stairs. They are luminaires which illuminate walkways and residential areas. These fixtures are equipped with high quality OSRAM LEDs with an LED lifespan of 50,000 burning hours.

    Our waterproof outdoor wall lights are both stylish and functional and are perfect for deck step lighting, landscape lighting & illuminating your garden or patio, and they come in a variety of styles to suit any décor. Whether you’re looking for recessed wall lights or surface-mounted wall lamps, we have a light to fit your needs. We focus on high quality with best prices & 3 year warranty. Our fixtures can save energy consumption and also make any outdoor area look beautiful.
