OUTDOOR WALL LIGHTS



Outdoor Wall Lights - R7CH0270

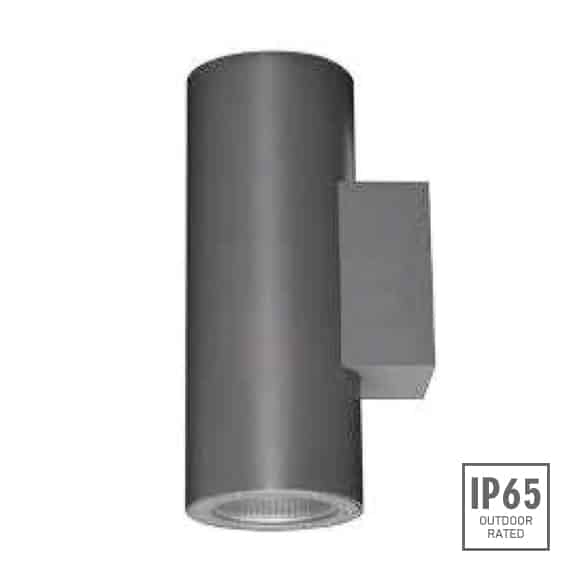

Wall Mounting Cylindrical Light with 2x18W NICHIA LED. R19 lens, beam angle of 10⁰/22⁰/38⁰, IK10 & IP65, aluminium alloy housing. Competitively priced, high-quality products with wide range (30+ designs). The fixture comes with powder coated colors of jet black, white aluminium and grey.
LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, sport, and other special social events for private gardens, public landscapes etc.

  • Compare us with the best manufacture before you buy our LED outdoor Lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: R7CH0270


    Housing:
    Extruded aluminium alloy #6063, powder coating, T=60-80um. Adhesion of ISO class 1/ASTM class 4B
    Reflector:
    Optical reflector, efficiency≥85%
    LED:
    NICHIA
    Operating Temperature:
    -20⁰C-40C⁰
    Power Cable:
    H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
    Weight:
    R7AH0227=1.4Kg R7BH0229=2.7Kg R7CH0270=4.6Kg
    CCT:
    3000K/6000K

    TECHNICAL DATA

    Model#Light SourceLensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Luminance(LM)IK
    R7CH02702x18W COBR1922⁰24V DC | 120 | 24024V=1660 | 120V=340 | 240V=18224V=40 | 120V=40.5 | 240V=42Cool White = 1795x2 | Warm White = 1617x210

    IP68 WATERPROOF CONNECTORS
