OUTDOOR WALL LIGHTS

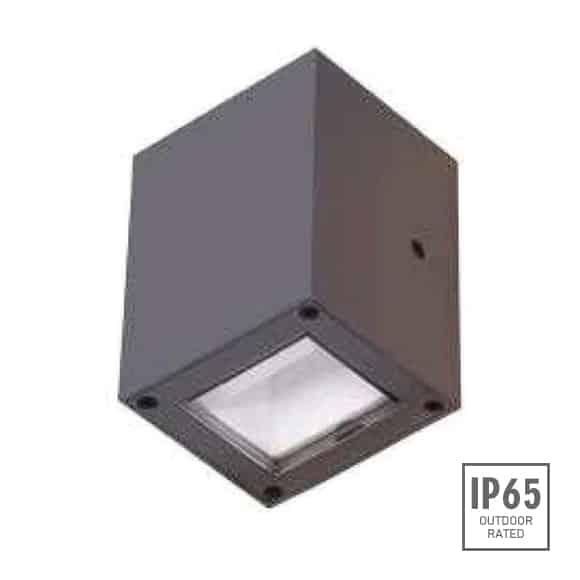

Outdoor Wall Lights - D7AB0237
Outdoor Wall Mounting Light with 6MM PC cover & multiple CCT options. 2x3W NICHIA LED, 2x155 lumens/watt, powder coated aluminium fixtures. Competitively priced, high-quality products with wide range (30+ designs).
Adjustable clamps to surface mount the fixtures comes with the fixture. LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, sport, and other special social events for private gardens, public landscapes etc.
Some of the highlights are as follows:
Material Specifications: D7AB0237
- Housing:
- 12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Light Window:
- PC T=6mm
- Gasket:
- Tooling shaped seal
- Driver:
- MAin voltage 100V-240V built-in driver
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
- CCT:
- 2000K/3000K/6000K
TECHNICAL DATA
Model# | Light Source | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|
D7AB0237 | 2x3W NICHIA | 24V DC | 120 | 240 | 24V=268 | 120V=73 | 240V=42 | 24V=6.2 | 120V=8.5 | 240V=8.6 | 2x155 | 06 |
IP68 WATERPROOF CONNECTORS
