OUTDOOR WALL LIGHTS
Outdoor Wall Lights - R7AF0126
Wall mounting light with built in driver & CCT of 3000K-6000K for exterior lighting. Aluminium housing in powder coated colors of sanded brown, sanded black and sanded white to choose from. Narrow beam of 18⁰ to wide beam of 40⁰ is an option to suit the lighting space and get the desired effect. Double side light emitting fixtures can be used to highlight walls. Narrow beam angle of 18⁰ can be used for Small lighting spaces to highlight a specific area. Competitively priced, high-quality products with wide range (30+ designs).
LED outdoor wall light can be used by lighting designers & architects to create fabulous nighttime aesthetics or to light up private gardens, public landscapes and highlight designs or textures on walls.
Some of the highlights are as follows:
Material Specifications: R7AF0126
- Housing:
- 12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Light Window:
- PC T=6mm
- Gasket:
- Tooling shaped seal
- Driver:
- MAin voltage 100V-240V built-in driver
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
- CCT:
- 3000K/6000K
TECHNICAL DATA

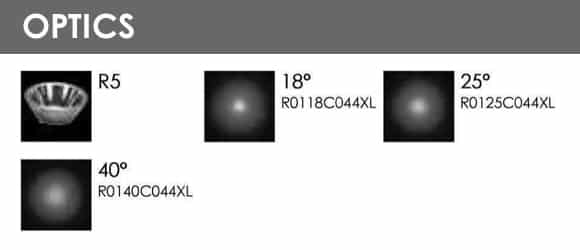

| Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| R7AF0126 | 1x6W COB | R5 | 25⁰ | 24V DC | 120 | 240 | 24V=270 | 120V=65 | 240V=37 | 24V=6.5 | 120V=7.7 | 240V=7.8 | Cool White = 745 | Warm White = 651 | 06 |
IP68 WATERPROOF CONNECTORS
Wall mounting light with built in driver & CCT of 3000K-6000K for exterior lighting. Aluminium body in powder coated colors of sanded brown, sanded black and sanded white to choose from. Narrow beam of 18⁰ to wide beam of 40⁰ is an option to suit the lighting space and get the desired effect. Double side light emitting fixtures is also an option to direct the light upwards and downwards to highlight walls. Narrow beam angle of 18⁰ can be used for Small lighting spaces to highlight a specific area. LED outdoor wall light can be used by lighting designers & architects to create fabulous nighttime aesthetics or to light up private gardens, public landscapes and highlight designs or textures on walls. Wall Mounting Light with aluminium body in powder coated colors. Built in driver, CCT of 3000K-6000K, CoB LED, IK06 rated.
