OUTDOOR WALL LIGHTS

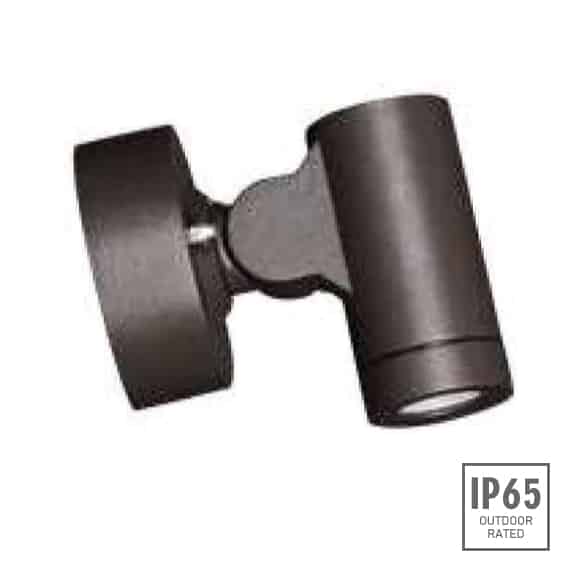

Outdoor Wall Lights - B3ZA0156
LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to a maximum of 8W. Beam angles offered are narrow to wide beam. The symmetric and asymmetric beam can be provided for uniform lighting effects.
The body material is aluminium die-cast in powder-coated colors of sanded grey, black, and silver. Adjustable clamps to surface mount the fixtures comes with the fixture. Color temperatures available are 2000K, 3000K and 6000K. Stunning designs. IP65, Symmetrical lens of 30⁰.
Some of the highlights are as follows:
Material Specifications: B3ZA0156
- Housing:
- 12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Lens:
- Optical lens, efficiency≥85%
- PC Cover:
- UV Resistance PC, T=3.5mm
- LED Driver:
- Constant Voltage Input, Constant current output
- PCB:
- Excellent heat conductivity aluminium, coefficient of heat conductivity≥2.0w/mk
- LED:
- OSRAM
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- AWM 1A 105⁰C 600V 18AWG FTI L=300mm
- Mounting Base:
- Powder coated die-cast aluminium
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B3ZA0156 | 1x1W | B17 | 30⁰ | 24V DC | 24V=48 | 24V=1.2 | Cool White = 100 | Warm White = 83 | 02 |


IP68 WATERPROOF CONNECTORS




Surface mounted outdoor wall lights 1W, 9 to 50 deg beam angle. For lighting projects in Latvia with IP65-66 rating and up to 3yrs warranty. The LED fixtures are made of aluminium die-cast and powder coated to standard 3 colors(dark grey, black & silver). OSRAM LED is the chip used in the fixture with high lumens output. The fixture wattage is 1W and the color temperature available are 2000K, 3000K and 6000K. The fixture is wall surface or ceiling mounted. Can be used in both indoor and outdoor applications.
