OUTDOOR WALL LIGHTS

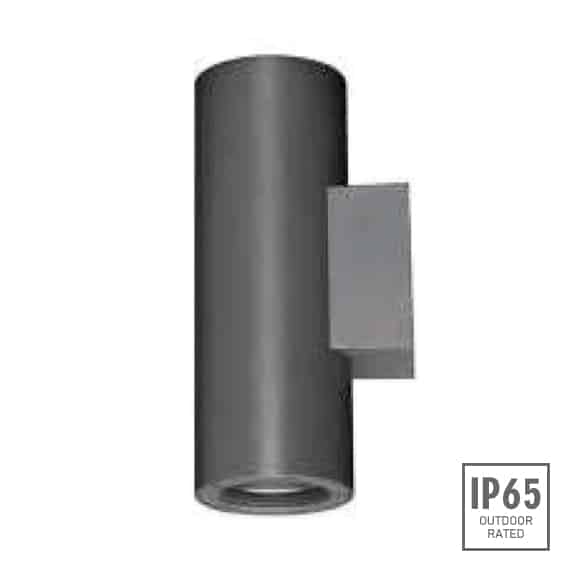

Outdoor Wall Lights - R7BH0229
Double-Side Wall Mounting Lights with 12W COB LED & R18 optical lens. Cool white/warm white CCT, NICHIA LED, IP65 application. Competitively priced, high-quality products with wide range (30+ designs). The fixture comes with powder coated colors of jet black, white aluminium and grey.
LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, sport, and other special social events for private gardens, public landscapes etc.
Some of the highlights are as follows:
Material Specifications: R7BH0229
- Housing:
- Extruded aluminium alloy #6063, powder coating, T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Reflector:
- Optical reflector, efficiency≥85%
- LED:
- NICHIA
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
- Weight:
- R7AH0227=1.4Kg R7BH0229=2.7Kg R7CH0270=4.6Kg
- CCT:
- 3000K/6000K
TECHNICAL DATA
Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Luminance(LM) | IK |
---|---|---|---|---|---|---|---|---|
R7BH0229 | 2x12W COB | R18 | 22⁰ | 24V DC | 120 | 240 | 24V=1080 | 120V=210 | 240V=116 | 24V=26 | 120V=25.5 | 240V=25 | Cool White = 1289x2 | Warm White = 1079x2 | 10 |


IP68 WATERPROOF CONNECTORS
