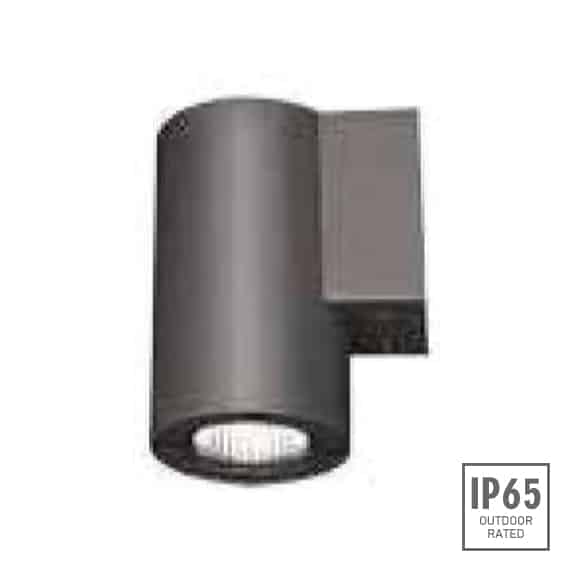

Outdoor Wall Lights - R7AH0128
Outdoor COB Wall Lights with 1x10W COB LED & R8 15⁰/24⁰/38⁰/60⁰ lens. Powder coated fixture colors, IK10 rated, RoHS compliant, NICHIA LED. Competitively priced, high-quality products with wide range (30+ designs). The fixture comes with powder coated colors of jet black, white aluminium and grey.
Adjustable clamps to surface mount the fixtures. LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, sport, and other special social events for private gardens, public landscapes etc.
Some of the highlights are as follows:
Material Specifications: R7AH0128
- Housing:
- Extruded aluminium alloy #6063, powder coating, T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Reflector:
- Optical reflector, efficiency≥85%
- LED:
- NICHIA
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
- Weight:
- R7AH0128=1.0Kg R7BH0170=1.9Kg R7CH0173=2.5Kg
- CCT:
- 3000K/6000K
TECHNICAL DATA
Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Luminance(LM) | IK |
---|---|---|---|---|---|---|---|---|
R7AH0128 | 1x10W COB | R8 | 24⁰ | 24V DC | 120 | 240 | 24V=480 | 120V=112 | 240V=63 | 24V=11.5 | 120V=13.1 | 240V=13.5 | Cool White = 1335 | Warm White = 1170 | 10 |


IP68 WATERPROOF CONNECTORS
