OUTDOOR WALL LIGHTS



Outdoor Wall Lights - R7VB0170


LED wall mounting light with 3MM glass & 1x18W COB LED. NICHIA LED, 100V-240V built-in driver, IP65 & IK06 rating, R17 lens.Competitively priced, high-quality products with wide range (30+ designs).
Adjustable clamps to surface mount the fixtures comes with the fixture. LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, sport, and other special social events for private gardens, public landscapes etc.

  • Compare us with the best manufacture before you buy our LED outdoor Lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

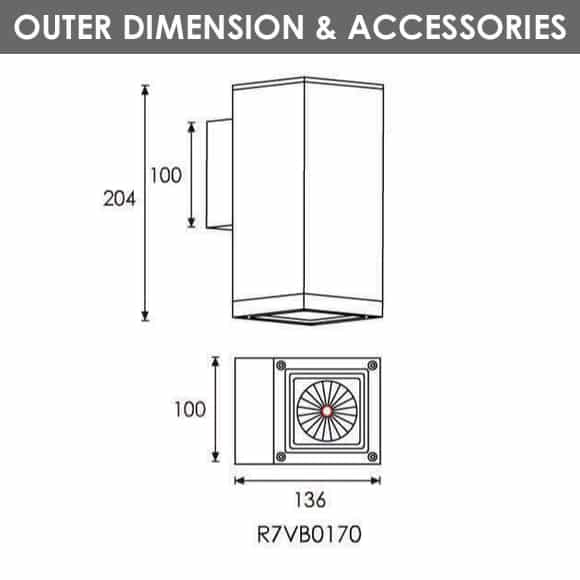

    Material Specifications: R7VB0170


    Housing:
    12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
    Light Window:
    Glass T=3mm
    Gasket:
    Tooling shaped seal
    Driver:
    Main voltage 100V-240V built-in driver
    LED:
    NICHIA
    Operating Temperature:
    -20⁰C-40C⁰
    Power Cable:
    H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
    CCT:
    3000K/6000K

    TECHNICAL DATA

    Model#Light SourceLensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Luminance(LM)IK
    R7VB01701x18W COBR1718⁰ 24V DC | 120 | 24024V=833 | 120V=178 | 240V=9624V=20 | 120V=20 | 240V=21Cool White = 1766 | Warm White = 170506

    IP68 WATERPROOF CONNECTORS
