OUTDOOR WALL LIGHTS



Outdoor Wall Lights - R8CJ0127

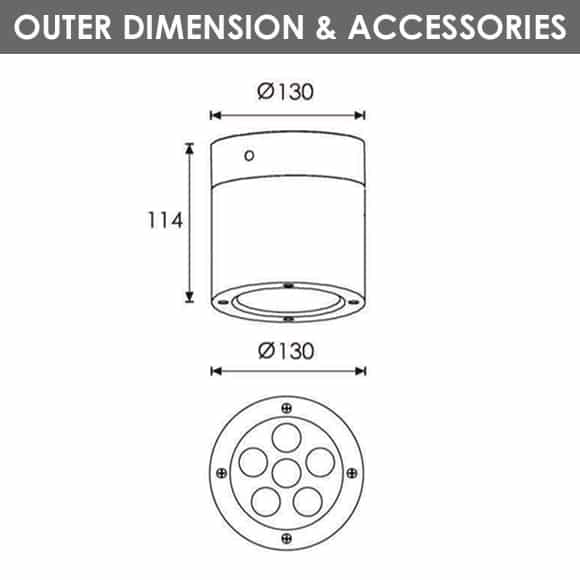

COB ceiling down light with 35⁰ & 10⁰ beam angle. 3000K/6000K CCT, 130MM(D) x 114MM(H), IP65 outdoor rated, extruded aluminium alloy. Competitively priced, high-quality products with wide range (30+ designs). The fixture comes with powder coated colors of dark grey, sanded white & sanded black.
LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, security, recreation and other social events for private gardens or public landscapes.

  • Compare us with the best manufacture before you buy our LED outdoor Lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: R8CJ0127


    Housing:
    Extruded aluminium alloy #6063 powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
    Reflector:
    Optical reflector, efficiency≥85%
    LED:
    NICHIA
    Operating Temperature:
    -20⁰C-40C⁰
    Power Cable:
    H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
    CCT:
    3000K/6000K

    TECHNICAL DATA

    Model#Light SourceLensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Luminance(LM)IK
    R8CJ01271x8W COBR2735⁰24V DC | 120 | 24024V=411 | 120V=88 | 240V=5024V=9.8 | 120V=10.8 | 240V=10.8Cool White = 850 | Warm White = 89606

    IP68 WATERPROOF CONNECTORS
