OUTDOOR LED WALL LIGHTS

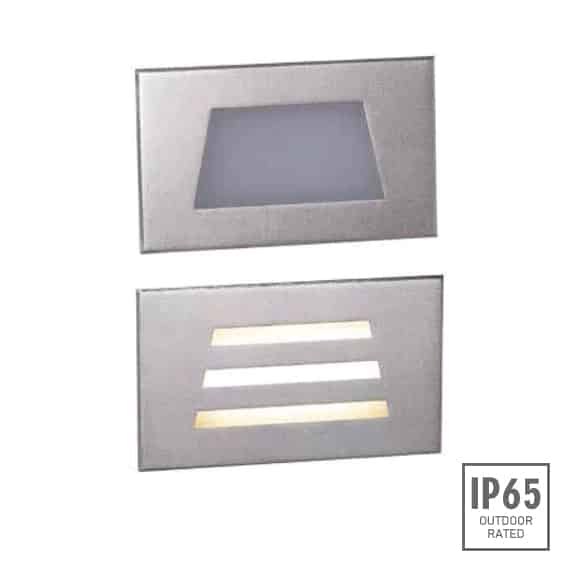

Outdoor LED Wall Lights - D1FD3634 | D1FC3634
LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 3000K and 6000K. Stunning designs, IP65, symmetrical lens. Premium quality outdoor LED wall lights for architectural lighting projects.
Some of the highlights are as follows:
Material Specifications: D1FD3634 | D1FC3634
- Housing & Front Cover:
- 12# Die-casting grey powder coated aluminium T=60-80um, Adhesion of ISO class 1/ASTM class 4B, Hard Chrome plated stainless steel 316#
- LED:
- SMD3030 type LED
- Cable Gland:
- IP67 PG-9 PA66
- Gasket:
- Molding shaped silicone seal
- LED Driver:
- Constant voltage Input, Constant Current Output
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m (Low Voltage) H05RN-F 3X1.0mm2 L=0.5m (High Voltage)
- Mounting Sleeve:
- ABS 091#
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
Model# | Light Source | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|
D1FD3634 | 36x0.1W | 24V DC | 120V | 240V | 24V=235 | 120V=100 | 240V=55 | 24V=5.5 | 120V=6.7 | 240V=6.6 | Cool White = 180 | Warm White = 166 | 09 |
D1FC3634 | 36x0.1W | 24V DC | 120V | 240V | 24V=235 | 120V=99 | 240V=55 | 24V=5.5 | 120V=6.7 | 240V=6.5 | Cool White = 180 | Warm White = 160 | 09 |
IP68 WATERPROOF CONNECTORS




Backyard lights housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 3000K and 6000K. Stunning designs, IP65, symmetrical lens. Premium quality LED lights for commercial lighting projects.
Backyard lights luminaires offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs and walkways with little or no glare. Plus, they blend into any architecture. So whether you’re lighting up a half landing or stair corner, you can be sure your space will look chic and polished. These fixtures can also be used as brick lights and for various landscape lighting ideas.
Choosing the right modern outdoor wall lighting fixtures for your needs can make all the difference in your garden or on your property. Whether you’re looking for a way to create a cozy atmosphere or increase safety, the right wall lighting can make a big impact. With so many options on the market, it’s important to consider what you need before making a purchase.
Outdoor wall lamp come in different wattages, beam angles and color temperatures. Wattage for outdoor LED lights starts from 1W to a maximum of 8W. These wattage options make it easy to choose lights depending on the effect. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beams can be provided for uniform lighting effects. Backyard lights body material is high grade aluminium die-cast in powder-coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K.
Features of these outdoor fixtures are:
- Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005
- Stunning designs, IP65, Symmetrical & Asymmetrical lens,1W-8W
- Compare us with the best outdoor lighting manufacturer before buying the products
- Free installation guide is provided with each product
- Check out the fascinating designs, quality, and prices
- Click each of the boxes below and download individual products of your choice
- High quality architectural LED wall lights at economical prices & 3 years warranty
Backyard lights recessed light or downlight (also pot light in Canadian English, sometimes can light (for canister light) in American English) is a light fixture that fits into a hollow opening in a ceiling. When installed it appears to have light shining from a hole in the ceiling, concentrating the light in a downward direction as a broad floodlight or narrow spotlight. “Pot light” or “canister light” implies the hole is circular and the lighting fixture is cylindrical, like a pot or canister.
