OUTDOOR LED WALL LIGHTS

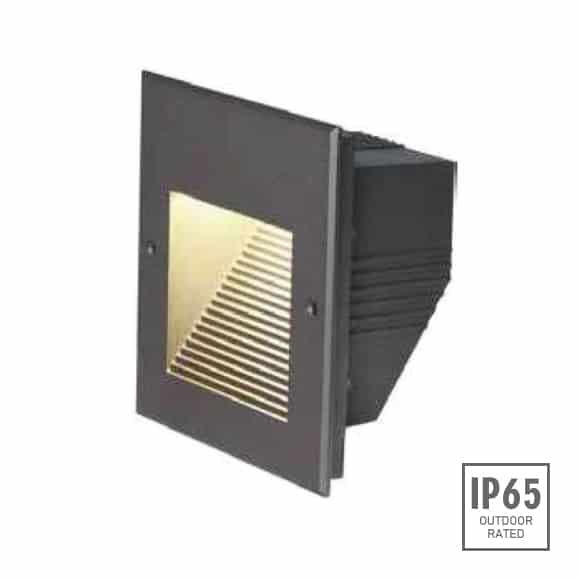

Outdoor LED Wall Lights - D1G1807
LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 3000K and 6000K. Stunning designs, IP65, symmetrical lens of 120⁰. Premium quality outdoor LED wall lights for architectural lighting projects.
Some of the highlights are as follows:
Material Specifications: D1G1807
- Housing & Front Cover:
- 12# Die-casting grey powder coated aluminium T=60-80um, Adhesion of ISO class 1/ASTM class 4B
- LED:
- SMD2835 type Power LED
- Cable Gland:
- IP67 copper and nickel coated
- Gasket:
- Molding shaped silicone seal
- LED Driver:
- Constant voltage Input, Constant Current Output
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m (Low Voltage) H05RN-F 3X1.0mm2 L=0.5m (High Voltage)
- Mounting Sleeve:
- Zinc coated steel 136#
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | Lens | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|
| D1G1807 | 18xSMD2835 | 120⁰ | 24V DC | 120V | 240V | 24V=50 | 120V=27 | 240V=17 | 24V=1.2 | 120V=1.7 | 240V=1.8 | Cool White = 39 | Warm White = 34 | 10 |
IP68 WATERPROOF CONNECTORS
LED under deck lighting, trusted by architects & lighting designers for high end projects. Trusted by architects & lighting designers for high end projects. Outdoor wall lights for architectural landscape lighting projects in Oman. Highly recommended by lighting consultants for lighting projects. LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. Triac, PWM, 1-10V & Dali dimming options available.
Housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K. Stunning designs, IP65, symmetrical lens of 120⁰. Premium quality LED lights for commercial lighting projects.
Similar products: Outdoor LED Wall Lights
LED under deck lighting, outdoor wall lights for modern outdoor wall lighting, landscape lighting, garden lights & deck step lighting with 40+ designs. Our LED wall lights are perfect for illuminating your garden or patio. They come in a variety of styles to suit any décor. Whether you’re looking for recessed wall lights or surface-mounted wall lamps, we have a light to fit your needs.
These outdoor wall lights give your wall a smooth, flush finish. Over 40+ designs of exterior wall lights available for various recessed wall lighting applications. Using them as brick lights can give your wall a beautiful texture. These recessed garden wall lights come in standard color temperatures of 2000K/2700K/3000K/3500K/4000K/5000K & 6000K with multiple dimming options.
LED under deck lighting are waterproof outdoor wall lights that can change the ambience of any outdoor area. The position of the LED offers a soft and comfortable light effect with superior performances. Our waterproof outdoor wall lights are particularly suitable for recessing into stone walls and stairs. They are luminaires which illuminate walkways and residential areas. These fixtures are equipped with high quality OSRAM LEDs with an LED lifespan of 50,000 burning hours.
LED under deck lighting waterproof outdoor wall lights are both stylish and functional and are perfect for deck step lighting, landscape lighting & illuminating your garden or patio, and they come in a variety of styles to suit any décor. Whether you’re looking for recessed wall lights or surface-mounted wall lamps, we have a light to fit your needs. We focus on high quality with best prices & 3 year warranty. Our fixtures can save energy consumption and also make any outdoor area look beautiful.
