OUTDOOR LED WALL LIGHTS

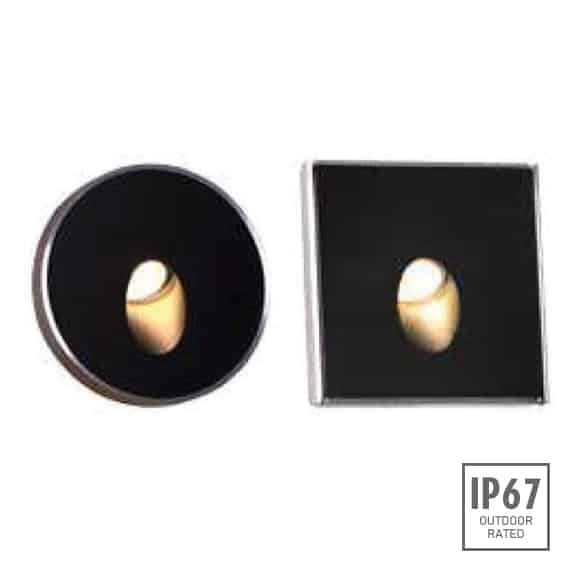

Outdoor LED Wall Lights - B1ABR0102 | B1ABS0102


LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 3000K and 6000K. Stunning designs, IP65, asymmetrical lens of 45⁰*35⁰. Premium quality outdoor LED wall lights for architectural lighting projects.

  • Compare us with the best outdoor lighting manufacturer before buying the products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: B1ABR0102 | B1ABS0102


    Housing & Front Cover:
    12# Die-casting aluminium T=20-25um, Adhesion of ISO class 1/ASTM class 4B high temperature painting
    Light Source:
    Emitter type Power LED
    LED Driver:
    Constant voltage Input, Constant Current Output
    Glass pressure capacity:
    Full area=2292kgs
    Operating Temperature:
    -20⁰C-40C⁰
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.3m
    Mounting Sleeve:
    ABS 098# / 099# + Stainless Steel Ring
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model#Light SourceLensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B1ABR01021x3WL0180C010AR45⁰x35⁰24V DC24V=13724V=3.3Cool White = 54 | Warm White = 5204
    B1ABS01021x3WL0180C010AR45⁰x35⁰24V DC24V=13724V=3.3Cool White = 54 | Warm White = 5204

    IP68 WATERPROOF CONNECTORS

    Wall lights for balcony Stunning designs, IP65, asymmetrical lens with various CCT options.  LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. Triac, PWM, 1-10V & Dali dimming options available.

    Housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K. Stunning designs, IP65, asymmetrical lens of 45⁰*35⁰. Premium quality LED lights for commercial lighting projects.

    Similar products: Outdoor LED Wall Lights

    Wall lights for balcony wall lights for modern outdoor wall lighting, landscape lighting, garden lights & deck step lighting with 40+ designs. Our LED wall lights are perfect for illuminating your garden or patio. They come in a variety of styles to suit any décor. Whether you’re looking for recessed wall lights or surface-mounted wall lamps, we have a light to fit your needs.

    These outdoor wall lights give your wall a smooth, flush finish. Over 40+ designs of exterior wall lights available for various recessed wall lighting applications. Using them as brick lights can give your wall a beautiful texture. These recessed garden wall lights come in standard color temperatures of 2000K/2700K/3000K/3500K/4000K/5000K & 6000K with multiple dimming options.

    These are waterproof outdoor wall lights that can change the ambience of any outdoor area. Wall lights for balcony position of the LED offers a soft and comfortable light effect with superior performances. Our  waterproof outdoor wall lights are particularly suitable for recessing into stone walls and stairs. They are luminaires which illuminate walkways and residential areas. These fixtures are equipped with high quality OSRAM LEDs with an LED lifespan of 50,000 burning hours

    Our waterproof outdoor wall lights are both stylish and functional and are perfect for deck step lighting, landscape lighting & illuminating your garden or patio, and they come in a variety of styles to suit any décor. Whether you’re looking for recessed wall lights or surface-mounted wall lamps, we have a light to fit your needs. Wall lights for balcony focus on high quality with best prices & 3 year warranty. Our fixtures can save energy consumption and also make any outdoor area look beautiful.
