OUTDOOR LED WALL LIGHTS

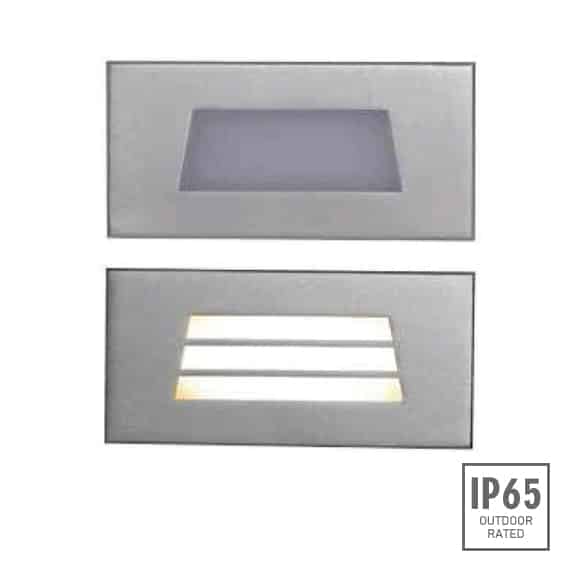

Outdoor LED Wall Lights - D1CD1834 | D1CC1834
LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 3000K and 6000K. Stunning designs, IP65, symmetrical lens. Premium quality outdoor LED wall lights for architectural lighting projects.
Some of the highlights are as follows:
Material Specifications: D1CD1834 | D1CC1834
- Housing & Front Cover:
- 12# Die-casting grey powder coated aluminium T=60-80um, Adhesion of ISO class 1/ASTM class 4B, Hard Chrome plated stainless steel 316#
- LED:
- SMD3030 type LED
- Cable Gland:
- IP67 PG-9 PA66
- Gasket:
- Molding shaped silicone seal
- LED Driver:
- Constant voltage Input, Constant Current Output
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m (Low Voltage) H05RN-F 3X1.0mm2 L=0.5m (High Voltage)

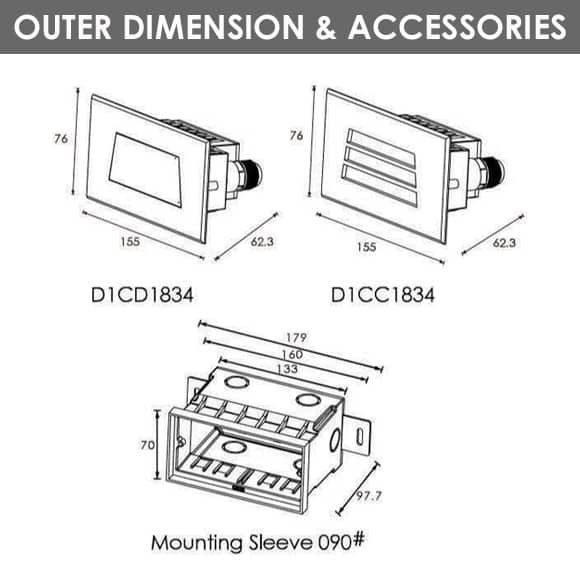

- Mounting Sleeve:
- ABS 090#
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
Model# | Light Source | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|
D1CD1834 | 18x0.2W | 24V DC | 120V | 240V | 24V=125 | 120V=56 | 240V=29 | 24V=3.0 | 120V=3.4 | 240V=3.9 | Cool White = 80 | Warm White = 70 | 09 |
D1CC1834 | 18x0.2W | 24V DC | 120V | 240V | 24V=125 | 120V=56 | 240V=29 | 24V=3.0 | 120V=3.4 | 240V=3.9 | Cool White = 65 | Warm White = 56 | 09 |
IP68 WATERPROOF CONNECTORS
Driveway marker light and preferred choice by lighting designers for projects. LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. Triac, PWM, 1-10V & Dali dimming options available.
Housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 3000K and 6000K. Stunning designs, IP65, symmetrical lens. Premium quality LED lights for commercial lighting projects.
Driveway marker light recessed light or downlight (also pot light in Canadian English, sometimes can light (for canister light) in American English) is a light fixture that fits into a hollow opening in a ceiling. When installed it appears to have light shining from a hole in the ceiling, concentrating the light in a downward direction as a broad floodlight or narrow spotlight. “Pot light” or “canister light” implies the hole is circular and the lighting fixture is cylindrical, like a pot or canister.
Driveway marker light are three parts to an outdoor wall light fixture: housing, trim and bulb. The trim is the visible portion of the light. It is the insert that is seen when looking up into the fixture, and also includes the thin lining around the edge of the light. There are many different types of bulbs that can be inserted into recessed lighting fixtures, with the amount of heat generated by the bulb being a unique consideration.
32 modern, aesthetic and timeless designs to choose from. Wattage ranging from 1-8W of beautiful outdoor recessed landscape lighting fixtures. High quality and product finish to meet the best standards in the world. All products have a warranty of 3 years with high quality standards. Our wide range of designs can light up walls, stairs and various other outdoor areas giving them a modern feel.
