OUTDOOR LED WALL LIGHTS

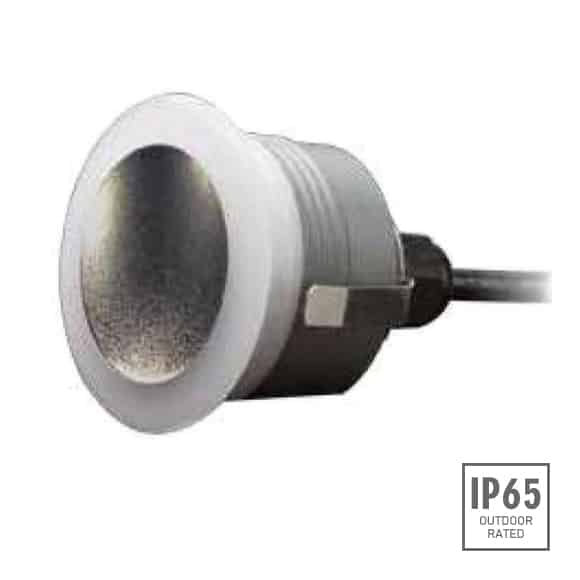

Outdoor LED Wall Lights - D1BO0136
LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 3000K and 6000K. PC cover, stunning designs, IP65, symmetrical lens. Premium quality outdoor LED wall lights for architectural lighting projects.
Some of the highlights are as follows:
Material Specifications: D1BO0136
- Housing:
- 12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Beam Windows:
- 50% transmittance PC Cover
- Waterproof Seal:
- Rubber seal
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m (Low Voltage) H05RN-F 3X1.0mm2 L=0.5m (High Voltage)
- Mounting Sleeve:
- ABS 071#
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|
| D1BO0136 | 1x2W | 24V DC | 120 | 240 | 24V=110 | 120V=46 | 240V=26 | 24V=2.6 | 120V=2.8 | 240V=3 | Cool White = 19 | Warm White = 20 | 09 |
IP68 WATERPROOF CONNECTORS
Outdoor LED Wall Lights Scotland
Outdoor LED Wall Lights for commercial lighting projects in Scotland. Most preferred choice by architects for outdoor projects. LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. Triac, PWM, 1-10V & Dali dimming options available.
Housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K. PC cover, stunning designs, IP65, symmetrical lens. Premium quality LED lights for commercial lighting projects in Scotland.
Similar products: https://www.est.net.in/outdoor-led-lighting/outdoor-led-wall-lights/
