OUTDOOR LED WALL LIGHTS

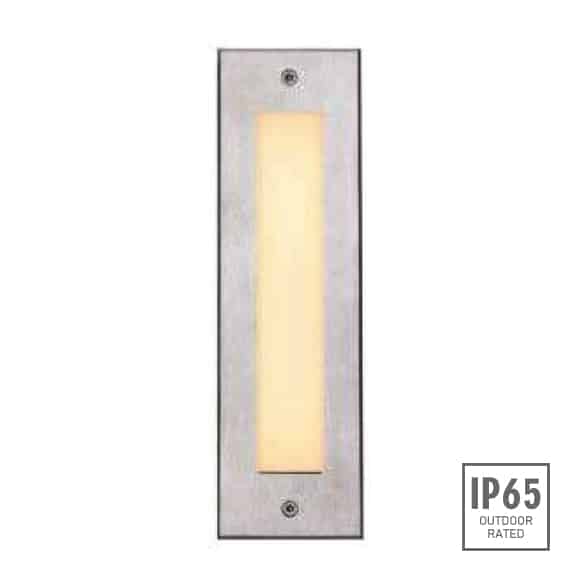

Outdoor LED Wall Lights - D1FA2034 | D1FF2034
LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 3000K and 6000K. Stunning designs, IP65, symmetrical lens. Premium quality outdoor LED wall lights for architectural lighting projects.
Some of the highlights are as follows:
Material Specifications: D1FA2034 | D1FF2034
- Housing & Front Cover:
- 12# Die-casting grey powder coated aluminium T=60-80um, Adhesion of ISO class 1/ASTM class 4B
- LED:
- SMD3030 type LED
- Cable Gland:
- IP67 copper and nickel coated
- Gasket:
- Molding shaped silicone seal
- LED Driver:
- Constant voltage Input, Constant Current Output
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m (Low Voltage) H05RN-F 3X1.0mm2 L=0.5m (High Voltage)
- Mounting Sleeve:
- ABS 091#
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|
| D1FA2034 | 20x0.2W | 24V DC | 120V | 240V | 24V=227 | 120V=102 | 240V=57 | 24V=5.6 | 120V=6.8 | 240V=6.8 | Cool White = 103 | Warm White = 96.5 | 10 |
| D1FF2034 | 20x0.2W | 24V DC | 120V | 240V | 24V=227 | 120V=101 | 240V=56 | 24V=5.6 | 120V=6.8 | 240V=6.8 | Cool White = 113.7 | Warm White = 104.3 | 10 |
IP68 WATERPROOF CONNECTORS
Recessed Outdoor Wall Lights USA
Recessed outdoor wall lights for architectural lighting application in USA. Most preferred choice by lighting designers for outdoor projects. LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. Triac, PWM, 1-10V & Dali dimming options available.
Housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 3000K and 6000K. Stunning designs, IP65, symmetrical lens of 18, 24 & 32 degree. Premium quality LED lights for commercial lighting projects.
