OUTDOOR LED WALL LIGHTS



Outdoor LED Wall Lights - D1BB5407


LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 2000K, 3000K and 6000K. Stunning designs, IP65, symmetrical lens. High quality outdoor LED wall lights for architectural lighting projects.

  • Compare us with the best outdoor lighting manufacturer before buying the products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: D1BB5407


    Housing:
    12# Die-casting grey powder coated aluminium T=60-80um, Adhesion of ISO class 1/ASTM class 4B
    Light Window:
    PC T=3mm
    Cable Gland:
    IP68 PG-9 PA66
    Gasket:
    Molding Shaped silicone seal
    LED Driver:
    Constant voltage Input, Constant current output
    Operating Temperature:
    -20⁰C-40C⁰
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m (Low Voltage) H05RN-F 3X1.0mm2 L=0.5m (High Voltage)

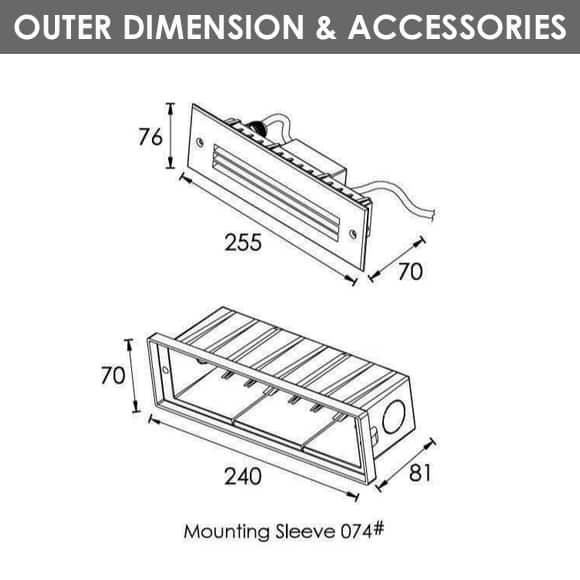

    Mounting Sleeve:
    ABS 074#
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali

    TECHNICAL DATA

    Model#Light Source Input VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    D1BB540754xSMD283524V DC | 120V | 240V24V=220 | 120V=95 | 240V=5324V=5.3 | 120V=6.4 | 240V=6.8Cool White = 47 | Warm White = 4409

    IP68 WATERPROOF CONNECTORS

    LED Wall Lights Canada

    LED Wall Lights for architectural outdoor lighting applications in Canada. Used by architects and lighting designers for outdoor projects. LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects.

    Housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K. Stunning designs, IP65, symmetrical lens. High quality outdoor LED wall lights for architectural lighting projects.
