OUTDOOR LED WALL LIGHTS

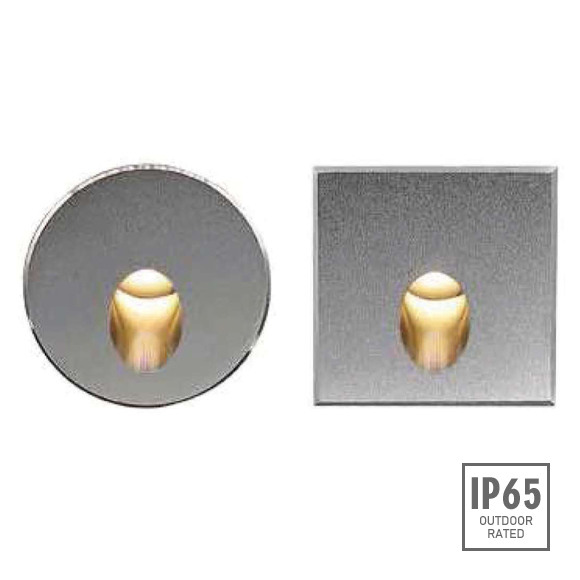

Outdoor LED Wall Lights - B1AAR0102 | B1AAS0102
LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. The body material is aluminium die-cast in powder coated colors of sanded grey, black and silver.
Color temperatures available are 3000K and 6000K. Stunning designs, IP65, symmetrical lens of 50⁰. Premium quality outdoor LED wall lights for architectural lighting projects.
Some of the highlights are as follows:
Material Specifications: B1AAR0102 | B1AAS0102
- Housing:
- 12# Die-casting aluminium T=20-25um. Adhesion of ISO class 1/ASTM class 4B high temperature painting
- Front Cover:
- Hard Chrome plated stainless steel SUS 316#
- Light Source:
- OSRAM
- LED Driver:
- Constant voltage Input, Constant Current Output
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.3m (low Voltage)
- Mounting Sleeve:
- ABS 100#
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| B1AAR0102 | 1x2W | L0180C010AR | 50⁰ | 24V DC | 24V=100 | 24V=2.4 | Cool White = 40 | Warm White = 36 | 10 |
| B1AAS0102 | 1x2W | L0180C010AR | 50⁰ | 24V DC | 24V=100 | 24V=2.4 | Cool White = 40 | Warm White = 36 | 10 |
IP68 WATERPROOF CONNECTORS
Outdoor LED Wall Lights Mexico
Outdoor LED Wall Lights for Prestigious Lighting Projects in Mexico. Most reliable and trusted brand for architectural lighting projects. LED wall lights are recessed and surface mounted lights with different wattages, beam angles and color temperatures. Wattage for outdoor LED wall lights starts from 1W to maximum of 8W. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beam can be provided for uniform lighting effects. Triac, PWM, 1-10V & Dali dimming options available.
Housing in aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K. Stunning designs, IP65, symmetrical lens of 50⁰. Premium quality LED lights for commercial lighting projects in Mexico.
