RGBW LIGHTS

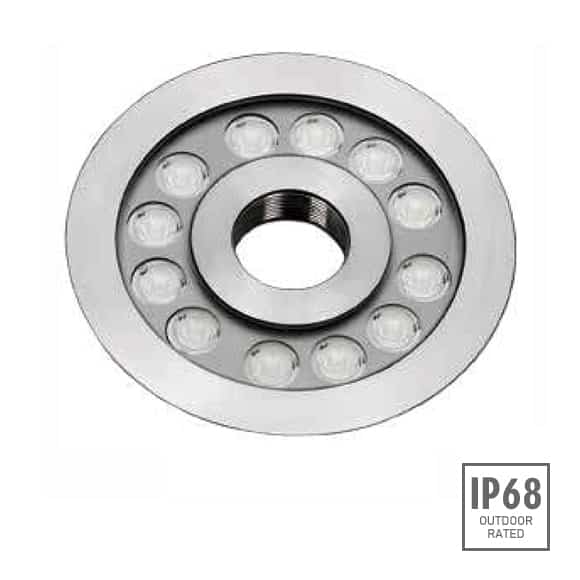

RGBW Lights - B4TB1219


RGBW Fountain lights with 12 LEDs per fixture. 30+ designs, 182MM diameter, hard chromeplated steel housing, overheat sensor system. Competitively priced, high-quality products with wide range (30+ designs).
These RGBW lights enhance the beauty of the water movement and create Infinite architectural lighting solutions. These light fixtures come with ingress protection of IP68. These fixtures can be used in various types of water bodies in addition to fountain lighting.

  • Compare us with the best outdoor lighting manufacturer before buying the products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: B4TB1219


    Front Cover & Housing:
    Hard Chromeplated Molding Shaped Stainless Steel Sus 316L#
    Light Window:
    Step Tempered glass. T=10mm
    Gasket:
    EPDM Gasket
    LED:
    SMD3535 RGBW 4in1
    Cable Gland:
    IP68 PG-11 copper with nickel-coated
    PCB:
    Excellent Heat Conductivity Aluminum.coefficient of Heat Conductivity≥2.0W/Mk
    LED Driver:
    Constant Voltage Input,Constant Current Output
    Power Cable:
    H05RR-F 5X0.75mm2 L=3.0m
    Application Environment:
    Temperature Of water between -20˚C~40˚C Less than 1 Meter depth
    Built-in overheat sensor system :
    Automatic Shutdown at 75°C
    CCT:
    RGBW

    TECHNICAL DATA

    Model NumberLight SourceLensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B4TB121912x3W RGBW 4in1B4930⁰24V DC24V=142524V=34.2136609

    IP68 WATERPROOF CONNECTORS
