RGBW LIGHTS

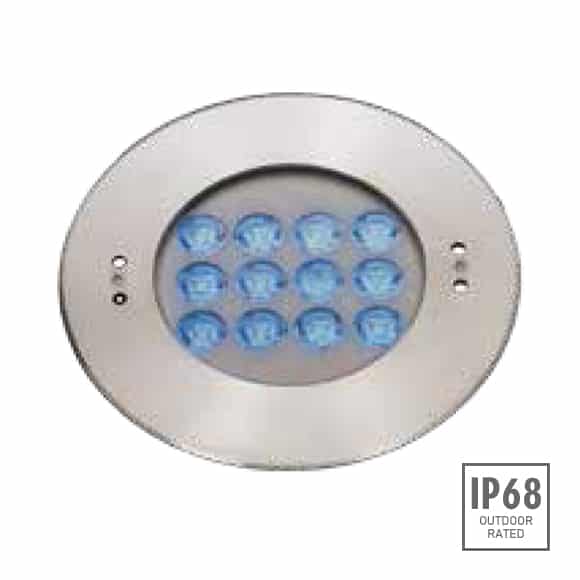

RGBW Lights - B4ZB1219
RGBW LED Pool Lights with overheat sensor. 10MM step tempered glass, 12x3W RGBW LED, 30⁰ optical lens, hotel & resort lighting. Competitively priced, high-quality products with wide range (30+ designs).
These lights come with an ingress protection of IP68. Lighting Designers & Architects use these fixtures to create fabulous nighttime aesthetics, illumination of pool walls, walkways, floor etc.
Some of the highlights are as follows:
Material Specifications: B4ZB1219
- Front Cover & Housing:
- Hard Chromeplated Molding Shaped Stainless Steel Sus 316#
- Light Window:
- Step Tempered glass. T=10mm
- Gasket:
- Silicone Gasket
- LED:
- SMD3535 RGBW 4in1
- Lens:
- Optical lens,efficiency≥85%
- Cable Gland:
- IP68 PG-11 copper with nickel-coated
- PCB:
- Excellent Heat Conductivity Aluminum.coefficient of Heat Conductivity≥2.0W/Mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Power Cable:
- H05RR-F 5X0.75mm2 L=3.0m
- Application Environment:
- Temperature Of water between -20˚C~40˚C Less than 1 Meter depth
- Built-in overheat sensor system :
- Automatic Shutdown at 75°C
- Mounting Sleeve :
- ABS 060#
- CCT:
- RGBW
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B4ZB1219 | 12x3W RGBW 4in1 | B48 | 30⁰ | 24V DC | 24V=1425 | 24V=34.2 | 1353 | 08 |
