RGBW LIGHTS

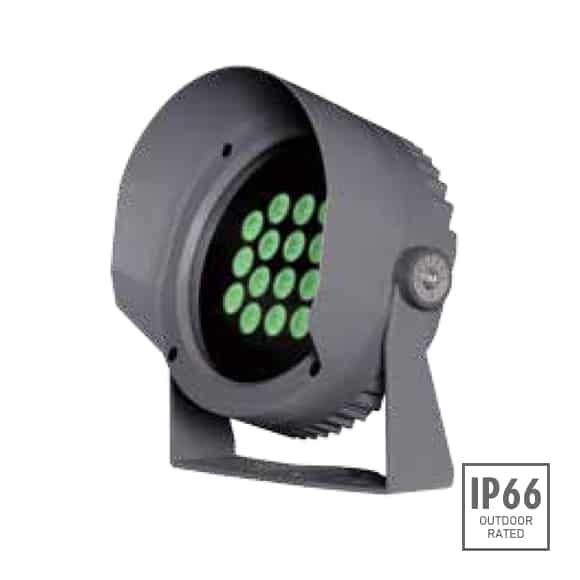

RGBW Lights - B3BB1819
RGBW LED Focus Lights with high grade components for Resort Lighting. 18x3W RGBW LED, Housing color variants available, Optical lens. Competitively priced, high-quality products with wide range (30+ designs).
Applications of these RGBW focus lights could be in various architectural outdoor lighting projects, lighting design, façade lighting, etc. LED quantity is 18 LEDs per fixture.
Some of the highlights are as follows:
Material Specifications: B3BB1819
- Housing:
- 12# Die-casting dark grey powder coated aluminum T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
- Lens:
- Optical lens,efficiency≥85%
- Light Window:
- Tempered glass. T=4mm
- Cable Gland:
- Copper and nickel coated
- LED:
- SMD3535 RGBW 4in1 LED
- Operating Temperature:
- -20˚C~40˚C
- Power Cable:
- H05RR-F 4X0.75mm2 L=2.0m
- Bracket:
- Powder coated aluminum.T=2.5mm
- CCT:
- RGBW
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B3BB1819 | 18x3W RGBW 4in1 | B48 | 30⁰ | 24V DC | 24V=2816 | 24V=67.6 | 2390 | 09 |


IP68 WATERPROOF CONNECTORS
