RGBW LIGHTS

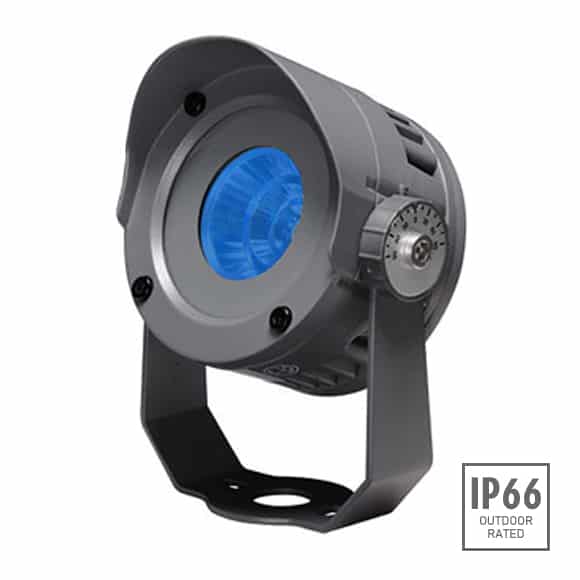

RGBW Lights - A3BG0122
RGBW Focus COB lights with 4MM tempered glass window, IP68 PG-9 PA66 cable gland & 3 housing color options for outdoor lighting purpose. Competitively priced, high-quality products with wide range (30+ designs)
Can be used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security and other special social events for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: A3BG0122
- Housing:
- 12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Light Window:
- Tempered glass. T=4mm
- LED:
- Prolight RGBW 4in1 LED
- Cable Gland:
- IP68 PG-9 PA66
- Lens:
- All-in-one optical lens, efficiency≥85%
- Bracket:
- Powder coated aluminium. T=2.5mm
- Power Cable:
- H05RN-F 5x0.5mm2 L=2.0m
- Gasket:
- Tooling shaped seal
- CCT:
- RGBW
TECHNICAL DATA
Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
A3BG0122 | 1x6 RGBW 4in1 | A24 | 30⁰ | 24V DC | 24V=338 | 24V=8.1 | 248 | 07 |
