RGBW LIGHTS

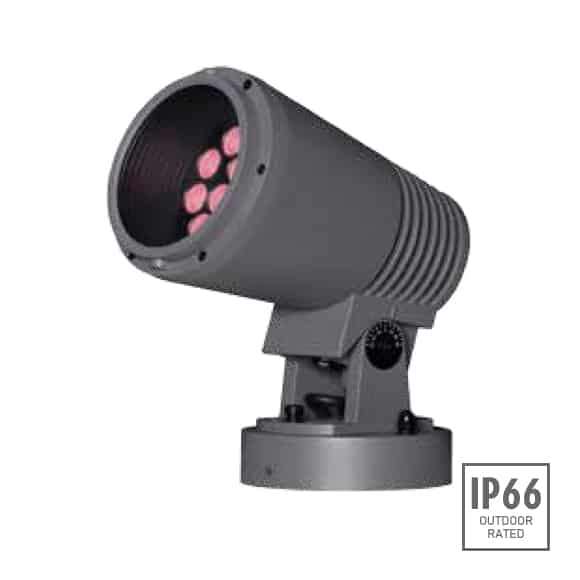

RGBW Lights - B3BJM1221
RGBW Adjustable Focus Lights with SMD5050 RGBW LED, quality certifications, Over 30 models IP66, Guaranteed for 3-5 yrs. Competitively priced, high-quality products with wide range (30+ designs).
Applications of these RGBW focus lights could be in various architectural outdoor lighting projects, lighting design, façade lighting, etc. LED quantity is 18 LEDs per fixture.
Some of the highlights are as follows:
Material Specifications: B3BJM1221
- Housing:
- 12# Die-casting dark grey powder coated aluminum T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
- Light Window:
- Tempered glass. T=3mm
- Cable Gland:
- IP68 PG-9 PA66
- LED:
- SMD5050 RGBW 4in1 LED(3BJ/3DJ/3CJ)
- Power Cable:
- H05RR-F 5X0.75mm2 L=0.3m
- Gasket:
- Tooling shaped seal
- CCT:
- RGBW
TECHNICAL DATA
| Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| B3BJM1221 | 12x5W RGBW 4in1 | B49 | 30⁰ | 24V DC | 24V=2912 | 24V=70 | 2054 | 06 |
