RGBW LIGHTS

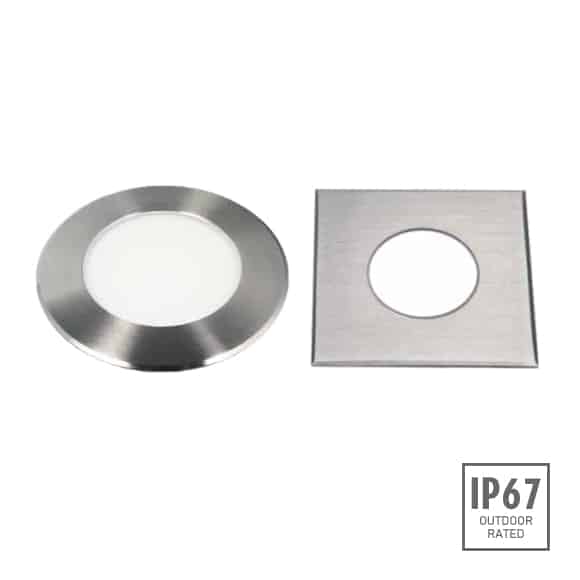

RGBW Lights - D2XBR2443 | D2XBS2443
RGBW Deck lights with frosted diffuser. Low power LEDs for ambient lighting. Triac & DALI dimming options available. Competitively priced, high-quality products with wide range (30+ designs).
RGBW Deck light for architectural lighting applications. Dark Grey powder coated aluminium housing with stainless steel front ring. Can be used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security, recreation for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: D2XBR2443 | D2XBS2443
- Housing:
- 12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Front Ring:
- Hard chromeplated stainless steel SUS 316L#
- Light Window:
- Step tempered silver printed glass. T=8mm
- Glass Pressure Capacity:
- Full area = 3370Kg
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 5x0.5mm2 L=0.5m
- Dimmable Support:
- Triac PWM 1-10V Dali
- CCT:
- RGBW
TECHNICAL DATA
Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
D2XBR2443 | 24xRGBW 6R/6G/6B/6W | -- | -- | 24V DC | 24V=R=17/B=17/G=18/W=17 | 24V=1.7 | 6.6 | 08 |
D2XBS2443 | 24xRGBW 6R/6G/6B/6W | -- | -- | 24V DC | 24V=R=17/B=17/G=18/W=17 | 24V=1.7 | 6.6 | 08 |
IP68 WATERPROOF CONNECTORS
