RGBW LIGHTS



RGBW Lights - A2BE0320


RGBW Inground light with Stainless steel SUS 316# front ring. Step tempered glass window, asymmetrical lens, IP67 rating for outdoor projects. Competitively priced, high-quality products with wide range (30+ designs)
RGBW Inground light for architectural lighting projects. Used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security, recreation for private gardens, public landscapes and LED outdoor lighting.

  • Compare us with the best manufacturer before you buy our LED outdoor Lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: A2BE0320


    Housing:
    12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
    Front Ring:
    Hard chromeplated stainless steel SUS 316#
    Light Window:
    Step tempered silver printed glass. T=8mm
    Glass Pressure Capacity:
    Full area = 2274Kg
    LED:
    Prolight RGBW 4in1 LED

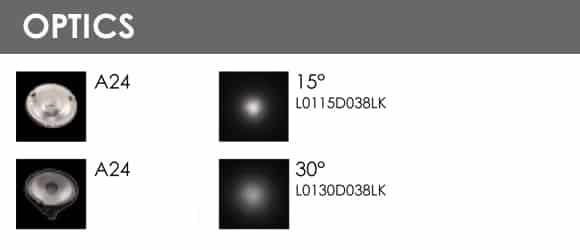

    Lens:
    Asymmetrical optical lens, efficiency≥85%
    Gasket:
    Molding shaped silicone seal
    LED Driver:
    Constant Voltage Input, Constant current output
    Operating Temperature:
    -20⁰C-40C⁰
    Power Cable:
    H05RN-F 5x0.75mm2 L=0.5m
    Cable Gland:
    IP68 PG-9 PA66
    Mounting Sleeve:
    ABS 016#
    CCT:
    RGBW

    TECHNICAL DATA

    Model#Light SourceLensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    A2BE03203x4W RGBW 4in1A2430⁰24V DC24V=58124V=1353207

    IP68 WATERPROOF CONNECTORS
