RGBW LIGHTS

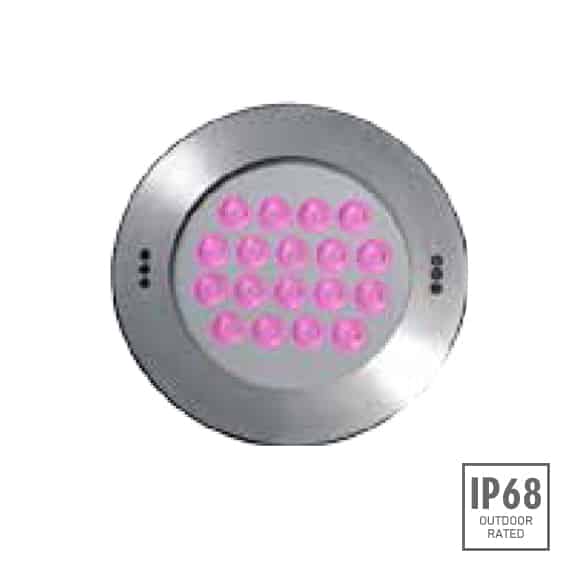

RGBW Lights - B4FB1819


Recessed RGBW Pool Lights for underwater lighting application. IP68 protection, ABS 075# mounting sleeve, Sus 316L# housing. Competitively priced, high-quality products with wide range (30+ designs).
These lights come with an ingress protection of IP68. Lighting Designers & Architects use these fixtures to create fabulous nighttime aesthetics, illumination of pool walls, walkways, floor etc.

  • Compare us with the best outdoor lighting manufacturer before buying the products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: B4FB1819


    Front Cover & Housing:
    Hard Chromeplated Molding Shaped Stainless Steel Sus 316L#
    Light Window:
    Step Tempered glass. T=10mm
    Gasket:
    Silicone Gasket
    LED:
    SMD3535 RGBW 4in1
    Lens:
    Optical lens,efficiency≥85%
    Cable Gland:
    IP68 PG-11 copper with nickel-coated
    PCB:
    Excellent Heat Conductivity Aluminum.coefficient of Heat Conductivity≥2.0W/Mk
    Glass pressure capacity:
    Full area=5012Kgs
    LED Driver:
    Constant Voltage Input,Constant Current Output
    Power Cable:
    H05RR-F 5X0.75mm2 L=3.0m
    Application Environment:
    Temperature Of water between -20˚C~40˚C Less than 1 Meter depth
    Built-in overheat sensor system :
    Automatic Shutdown at 75°C
    Mounting Sleeve :
    ABS 075#
    CCT:
    RGBW

    TECHNICAL DATA

    Model NumberLight SourceLensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B4FB181918x3W RGBW 4in1B4830⁰24V DC24V=215024V=52205110

    IP68 WATERPROOF CONNECTORS
