RGBW LIGHTS

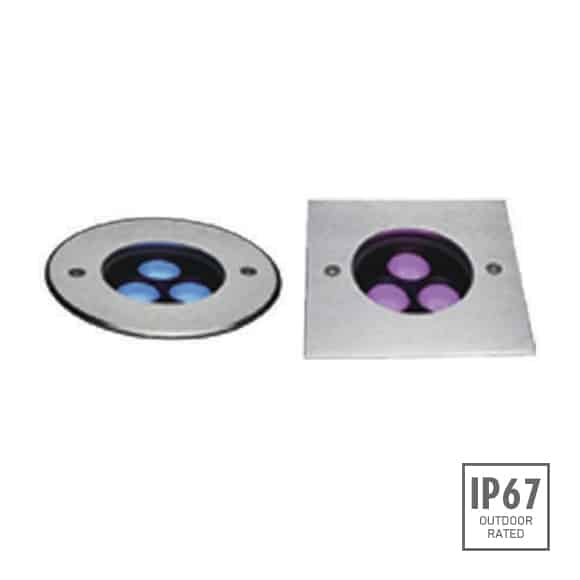

RGBW Lights - FB2CDR0319 | FB2CDS0319
RGBW LED Inground Light with stainless steel SUS 316L front cover. SMD 3535 4in1 LED, Optional honeycomb louver with different lens options. Competitively priced, high-quality products with wide range (30+ designs).
These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment. Different beam angles for LED inground lights can be combined with LEDs to create infinite architectural and interior lighting solutions
Some of the high lights are as follows:
Material Specifications: FB2CDR0319 | FB2CDS0319
- Housing:
- 12# Die-casting grey powder coated aluminum T=60-80μm Adhesion of ISO class 1/ASTM class 4B
- Front Ring:
- Hard chromeplated stainless steel SUS 316L#
- Light Window:
- Step Tempered glass. T=8mm
- LED:
- SMD 3535 4in1 LED
- Glass Pressure capacity:
- Full area=2578Kgs
- Cable Gland:
- IP68 PG-9 PA66
- PCB:
- Excellent heat conductivity aluminum, coefficientof heat Conductivity≥2.0w/mk
- Lens:
- Optical lens.efficiency≥85%
- Operating Temperature:
- -20⁰C~40⁰C
- Power Cable:
- H05RR-F 5X0.75mm2 L=0.5m
- Mounting Sleeve:
- ABS 015#
- CCT:
- RGBW
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
FB2CDR0319 | 3x3W RGBW 4in1 | B49 | 30⁰ | 24V DC | 24V=441 | 24V=10.6 | 437 | 09 |
FB2CDS0319 | 3x3W RGBW 4in1 | B49 | 30⁰ | 24V DC | 24V=441 | 24V=10.6 | 437 | 09 |


IP68 WATERPROOF CONNECTORS
