RGBW LIGHTS

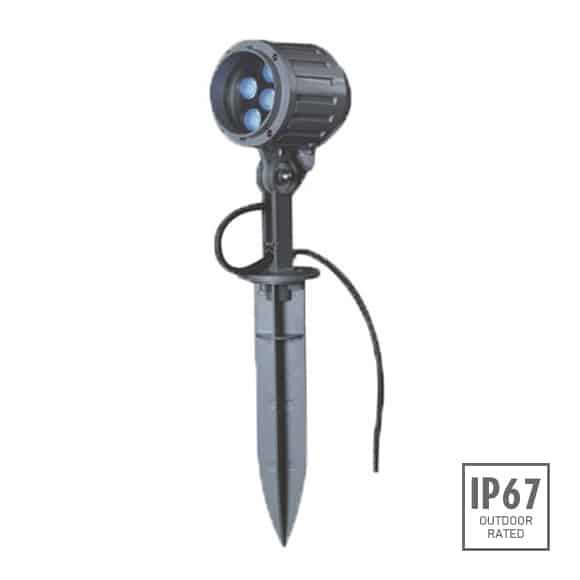

RGBW Lights - FB3BQB0619
Competitively priced, high-quality products with wide range (30+ designs)
LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, accessibility, security, recreation, sport, and other special social events for private gardens, public landscapes and LED outdoor lighting
Some of the highlights are as follows:
Material Specifications: FB3BQB0619
- Housing:
- 12# Die-casting dark grey powder coated aluminum T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
- Lens:
- All-in-one optical lens,efficiency≥85%
- Light Window:
- Tempered glass. T=4mm
- Cable Gland:
- IP68 PG-9 PA66
- Gasket:
- Molding shaped silicone double seal
- LED:
- SMD 3535 RGBW 4in1 LED
- PCB:
- Excellent heat conduvtivity aluminum, coefficient of heat Conductivity≥2.0w/mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Glass pressure capacity:
- Full area=3251Kgs
- Operating Temperature:
- -20⁰C~40⁰C
- Power Cable:
- H05RR-F 5X0.75mm2 L=2.0m
- Spike:
- ABS spike 7A
- Bracket:
- Powder coated die-casting aluminum
- CCT:
- RGBW
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
FB3BQB0619 | 6x3W | B49 | 30⁰ | 24V DC | 24V=933 | 24V=22.4 | 657 | 05 |


IP68 WATERPROOF CONNECTORS
