RGBW LIGHTS

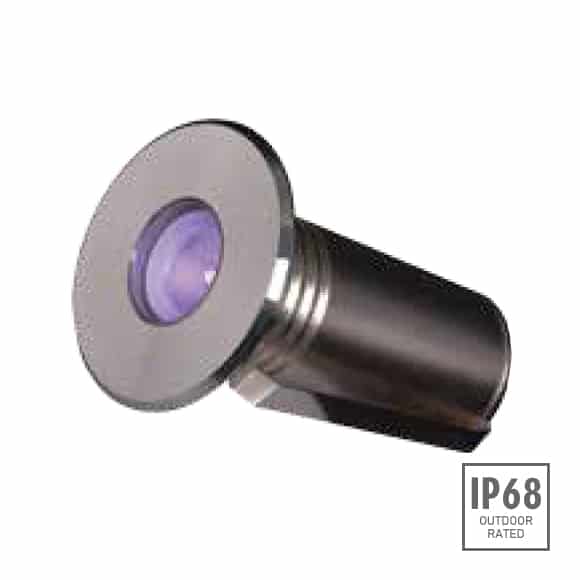

RGBW Lights - B4A0119


RGBW Mini Underwater Lights with ABS 061# mounting sleeve. Stainless Steel housing, 7MM tempered glass, underwater lighting application. Competitively priced, high-quality products with wide range (30+ designs).
These lights come with an ingress protection of IP68. Lighting Designers & Architects use these fixtures to create fabulous nighttime aesthetics, illumination of pool walls, walkways, floor etc.

  • Compare us with the best outdoor lighting manufacturer before buying the products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: B4A0119


    Front Cover & Housing:
    Hard Chromeplated Molding Shaped Stainless Steel Sus 316#
    Light Window:
    Step Tempered glass. T=7mm
    Gasket:
    Silicone Gasket
    LED:
    SMD3535 RGBW 4in1
    Lens:
    Optical Lens,Efficiency≥85%
    PCB:
    Excellent Heat Conductivity Aluminum.coefficient of Heat Conductivity≥2.0W/Mk
    LED Driver:
    Constant Voltage Input,Constant Current Output
    Power Cable:
    H05RN-F 5X0.5mm2 L=3.0M
    Application Environment:
    Temperature Of water between -20˚C~40˚C Less than 1 Meter depth

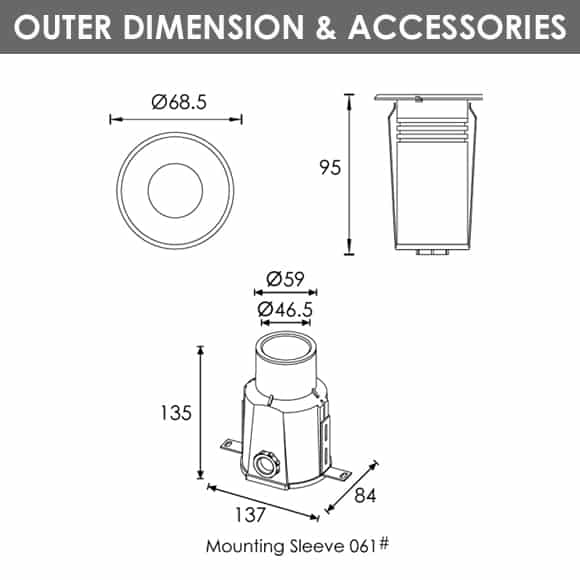

    Mounting Sleeve:
    ABS 061#
    CCT:
    RGBW

    TECHNICAL DATA

    Model NumberLight SourceLensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B4A01191x3W RGBW 4in1B4930⁰24V DC24V=12524V=38506

    IP68 WATERPROOF CONNECTORS
