RGBW LIGHTS

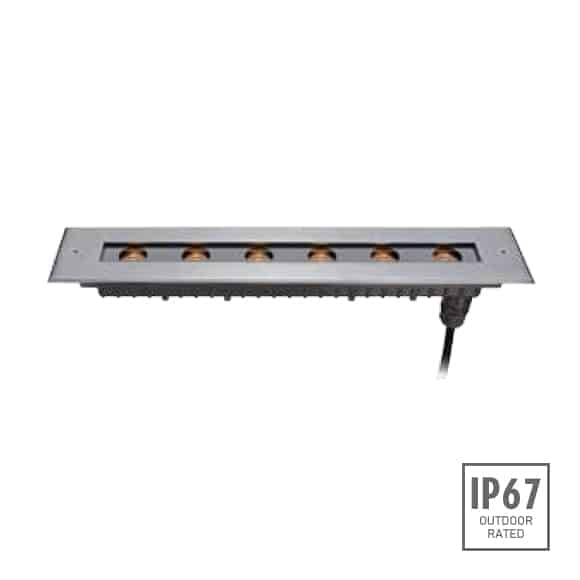

RGBW Lights - B2FL0619
RGBW Linear Wall Washer with IP68 cable gland, SMD 3535 LED. 8MM tempered glass. DMX controller for different lighting effects. Competitively priced, high-quality products with wide range (30+ designs).
Premium quality Wall washer inground lights at competitive price, with a range of optics and sizes to select. New range of wall washer has color option of RGBW with DMX controls. Can be used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security and other special social events for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: B2FL0619
- Housing:
- 12# Die-casting dark grey powder coated aluminum.T=60-80μm
- Front Cover:
- Hard chromeplated stainless steel SUS 316L#
- Light Window:
- StepTempered glass. T=8mm
- LED:
- SMD 3535 4in1 LED
- Cable Gland:
- IP68 PG-9 PA66
- Gasket:
- Molding shaped silicone seal
- Glass pressure capacity:
- Full area=3251Kgs
- PCB:
- Excellent heat conduvtivity aluminum, coefficient of heat Conductivity≥2.0w/mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Operating Temperature:
- -20⁰C~40⁰C
- Power Cable:
- H05RR-F 5X0.75mm2 L=0.5m
- Mounting Sleeve:
- ABS 077#
- CCT:
- RGBW
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Weight(KG) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
B2FL0619 | 6x2W RGBW 4in1 | B48 | 30⁰ | 1.6 | 24V DC | 24V=513 | 24V=12.3 | 528 | 08 |


IP68 WATERPROOF CONNECTORS
