RGBW LIGHTS

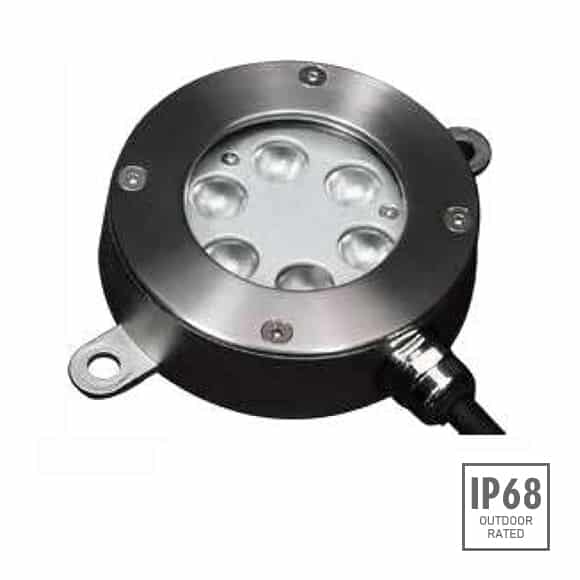

RGBW Lights - B4B0619 | B4E0619
RGBW LED Fountain Lights for various types of water bodies. IP68 outdoor rating, Silicone Gasket, 24V DC, stainless steel front cover. Competitively priced, high-quality products with wide range (30+ designs).
These RGBW lights enhance the beauty of the water movement and create Infinite architectural lighting solutions. These fixtures can be used in various types of water bodies in addition to fountain lighting.
Some of the highlights are as follows:
Material Specifications: B4B0619 | B4E0619
- Front Cover & Housing:
- Hard Chromeplated Molding Shaped Stainless Steel SUS 316L#
- Light Window:
- Step Tempered glass. T=8mm
- Gasket:
- Silicone Gasket
- LED:
- SMD3535 RGBW 4in1
- Lens:
- Separate optical lens efficiency≥85%
- Cable Gland:
- IP68 PG-11 copper with nickel-coated
- PCB:
- Excellent Heat Conductivity Aluminum.coefficient of Heat Conductivity≥2.0W/Mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Power Cable:
- H05RR-F 5X0.75mm2 L=3.0m
- Application Environment:
- Temperature Of water between -20˚C~40˚C Less than 1 Meter depth
- Built-in overheat sensor system :
- Automatic Shutdown at 75°C
- CCT:
- RGBW
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B4B0619 | 6x3W RGBW 4in1 | B48 | 30⁰ | 24V DC | 24V=720 | 24V=17.3 | 649 | 08 |
B4E0619 | 6x3W RGBW 4in1 | B48 | 30⁰ | 24V DC | 24V=720 | 24V=17.3 | 674 | 07 |


IP68 WATERPROOF CONNECTORS
