RGB LIGHTS

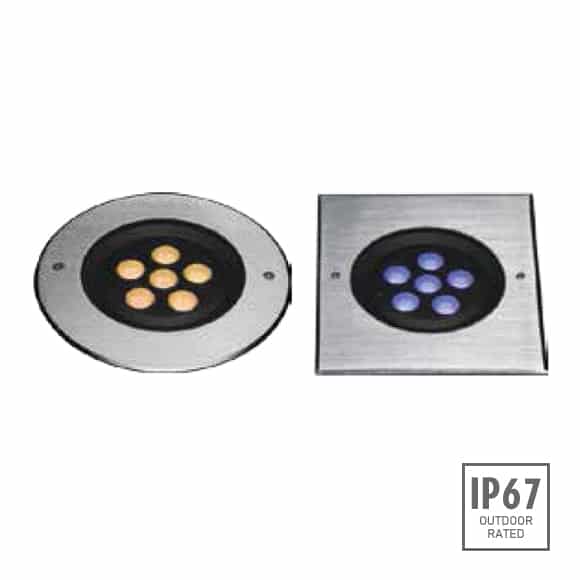

RGB Lights - FB2VAR0619 | FB2VAS0619
RGB LED Inground Light made from high grade components. 20° & 30° lens, 729 lumens/watt, 6x3W RGB, IP67 outdoor rating .Competitively priced, high-quality products with wide range (30+ designs).
These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment. Different beam angles for LED inground lights can be combined with LEDs to create infinite architectural and interior lighting solutions.
Some of the highlights are as follows:
Material Specifications: FB2VAR0619 | FB2VAS0619
- Housing:
- 12# die-casting grey powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
- Front Ring:
- Hard chromeplated Staines steel SUS 316L#
- Light Window:
- Step tempered glass.T=8mm
- Waterproof:
- Molding shaped silicone seal
- Glass pressure capacity:
- Full area=2274Kgs
- Cable Gland:
- IP68 PG-9 PA66
- Gasket:
- Silicone seal
- Lens:
- Optical lens.efficiency≥85%
- LED:
- SMD5050 RGB 3in1 LED
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Operating Temperature:
- -20˚C~40˚C
- Power Cable:
- H05RN-F 4X0.75mm2 L=0.5m
- Mounting Sleeve:
- PVC 057#
- CCT:
- RGB
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
FB2VAR0619 | 6x3W RGB 3in1 | B49 | 30° | 24V DC | R=350 | G=350 | B=350 | 24V=25.2 | 729 | 09 |
FB2VAS0619 | 6x3W RGB 3in1 | B49 | 30° | 24V DC | R=350 | G=350 | B=350 | 24V=25.2 | 729 | 09 |
