RGB LIGHTS



RGB Lights - D1UA0106
RGB LED Wall Lights with ABS 035# mounting sleeve. SUS 316# front cover, IP65 protection, optical glass, Guaranteed for 3-5 yrs. Competitively priced, high-quality products with wide range (30+ designs).
Premium quality outdoor LED wall lights for architectural lighting projects. These wall lights can be used to highlight wall columns.
Some of the highlights are as follows:
Material Specifications: D1UA0106
- Housing:
- 12# die-casting grey powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
- Front Ring:
- Hard chromeplated Staines steel SUS 316#
- Lens:
- Optical Glass
- LED:
- SMD3535 RGB 3in1 LED
- Waterproof seal:
- Rubber seal
- Operating Temperature:
- -20˚C~40˚C

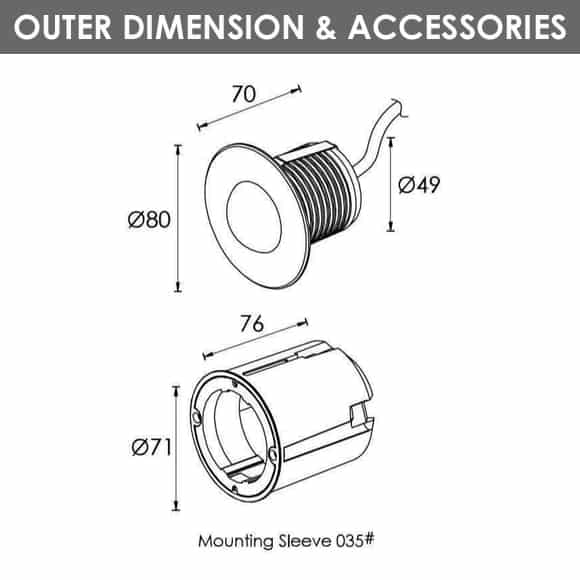

- Mounting Sleeve:
- ABS 035#
- CCT:
- RGB
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
D1UA0106 | 1x3W RGB 3in1 | L0145F042KP | 45° | 24V DC | R=48 | G=62 | B=62 | 24V=4.1 | 82 | 09 |
IP68 WATERPROOF CONNECTORS
