RGB LIGHTS

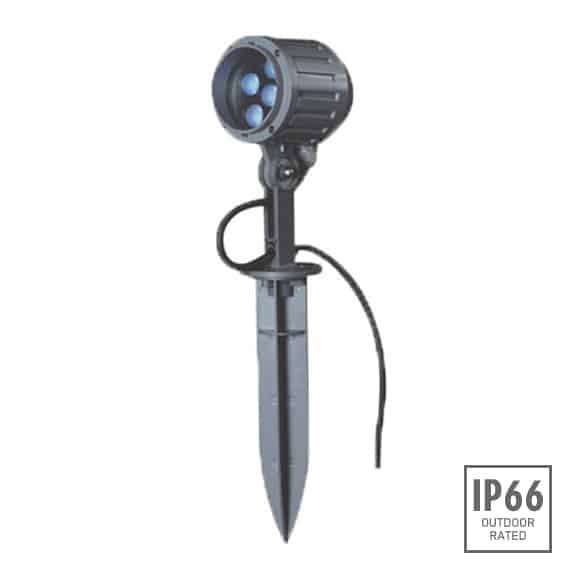

RGB Lights - FB3BQB0618
High quality RGB Landscape light, die-casting aluminium coated, 6x2.0W LED, optional hood available, dark grey & black color housing. Competitively priced, high-quality products with wide range (30+ designs).
Can be used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security and other special social events for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: FB3BQB0618
- Housing:
- 12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
- Lens:
- All-in-one optical lens,efficiency≥85%
- Light Window:
- Tempered glass.T=4mm
- Cable Gland:
- IP68 PG-9 PVC copper and nicket coated
- Gasket:
- Molding shaped silicone double seal
- LED:
- SMD3535 3 IN 1 LED
- LED Driver:
- Constant Voltage Input,Constant Current Output
- PCB:
- Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w/mk
- Operating Temperature:
- -20ËšC~40ËšC
- Power Cable:
- H05RN-F 4X0.75mm2 L=2.0m
- Spike:
- ABS spike 7A
- CCT:
- RGB
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltge | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
FB3BQB0618 | 6x2.0W RGB 3in1 | B49 | 30° | 24V DC | R=210 | G=260 | B=260 | 24V=17.5 | 393 | 05 |
