RGB LIGHTS

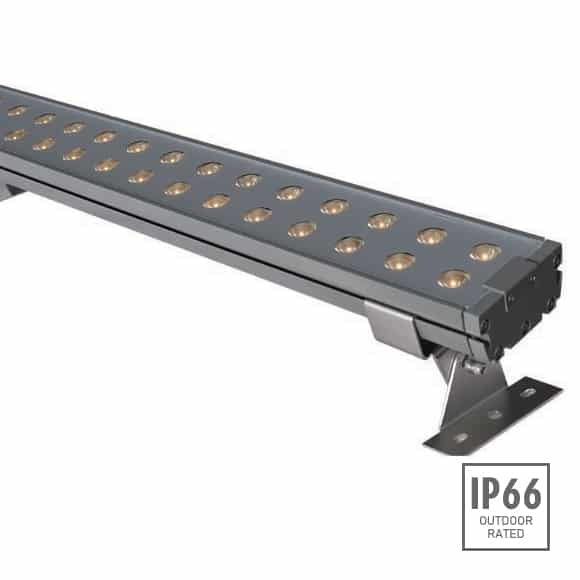

RGB Lights - B6P1618 | B6P3018
Linear RGB Wall Washer high lumens output. Dark grey fixture, IP66 protected, Extruded aluminum body, 2W RGB 3in1 LED, 20°/30° lens. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion. Competitively priced, high-quality products with wide range (30+ designs)
These linear wall washers change the ambience of the area of facade. Can be used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security and other special social events for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: B6P1618 | B6P3018
- Housing:
- Extruded aluminum,powder coated
- Light Window:
- Step tempered glass.T=4mm
- Lens:
- Optical lens,efficiency≥85%
- LED:
- SMD3535 RGB 3 IN 1
- Cable Gland:
- IP68 PG-11 PA66
- Operating temperature:
- -20ºC~40ºC
- Bracket:
- Stainess steel.T=1.5mm
- Power Cable:
- Input:waterproof plug connector Output:waterproof socket connector 2XH07RN-F 4X1.0mm2L=0.3m
- CCT:
- RGB
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Length(MM) | Input Voltge | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
B6P1618 | 16x2W RGB 3in1 | B49 | 30° | 305 | 24V DC | R=400 | G=750 | B=750 | 24V=45 | 1248 | 05 |
B6P3018 | 30x2W RGB 3in1 | B49 | 30° | 605 | 24V DC | R=1000 | G=1250 | B=1250 | 24V=84 | 2384 | 05 |


IP68 WATERPROOF CONNECTORS
