RGB LIGHTS

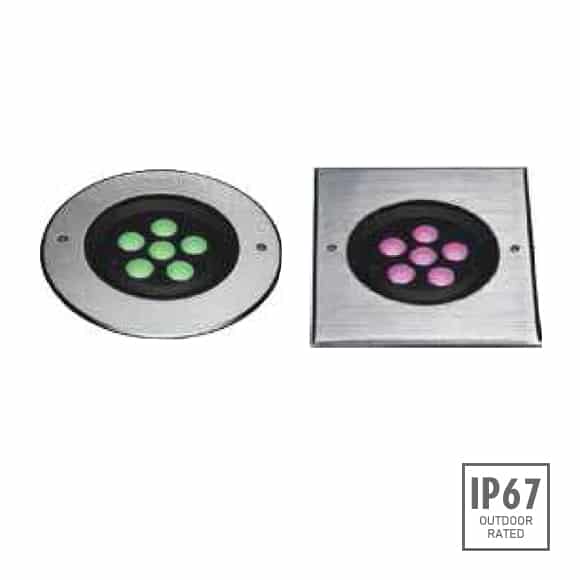

RGB Lights - FB2BFR0618 | FB2BFS0618
Inground RGB Light for garden landscape lighting. High grade steel cover, silicone seal, low power 24V DC, dark grey housing color. Competitively priced, high-quality products with wide range (30+ designs).
These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment. Different beam angles for LED inground lights can be combined with LEDs to create infinite architectural and interior lighting solutions.
Some of the highlights are as follows:
Material Specifications: FB2BFR0618 | FB2BFS0618
- Housing:
- 12# die-casting grey powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
- Front Ring:
- Hard chromeplated Staines steel SUS 316L#
- Light Window:
- Step tempered glass.T=8mm
- Glass pressure capacity:
- Full area=2274Kgs
- Cable Gland:
- IP68 PG-9 PA66
- Gasket:
- Molding shaped silicone seal
- Lens:
- Optical lens.efficiency≥85%
- LED:
- SMD3535 RGB 3in1 LED
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Operating Temperature:
- -20ËšC~40ËšC
- Power Cable:
- H05RN-F 4X0.75mm2 L=0.5m
- Mounting Sleeve:
- PVC 016#
- CCT:
- RGB
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
FB2BFR0618 | 6x2W RGB 3in1 | B49 | 30° | 24V DC | R=200 | G=250 | B=250 | 24V=16.8 | 448 | 07 |
FB2BFS0618 | 6x2W RGB 3in1 | B49 | 30° | 24V DC | R=200 | G=250 | B=250 | 24V=16.8 | 448 | 07 |
