RGB LIGHTS

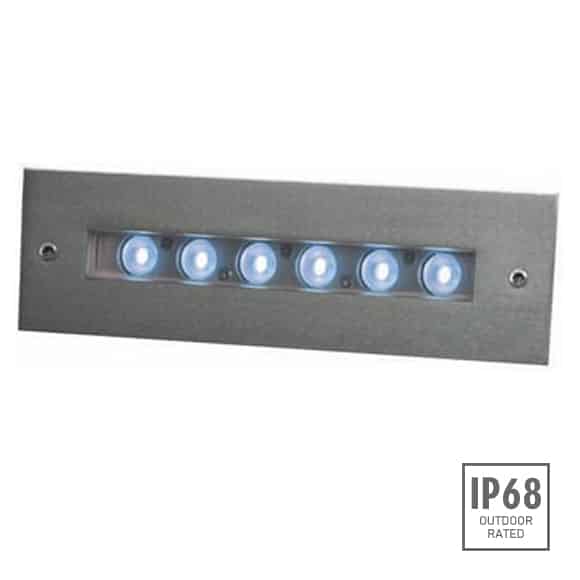

RGB Lights - B4TL0618
Asymmetrical RGB Pool Light with SMD3535 LED. IP68 outdoor application, 6x2W, B48 optical lens, 9MM tempered glass. Competitively priced, high-quality products with wide range (30+ designs).
These lights make the pool more attractive and help in highlighting the shape and texture of the pool. Swimming pool lights with asymmetric lens installed in the wall and buried in ground will give wall washing effect inside pools and water bodies.
Some of the highlights are as follows:
Material Specifications: B4TL0618
- Front Cover & Housing:
- Hard chromeplated Molding shaped stainless steel SUS 316#
- Light Window:
- Step tempered glass. T=9mm
- LED:
- SMD 3535 RGB 3 IN 1
- Lens:
- Asymmtrical optical lens,efficiency≥85%
- Cable Gland:
- IP68 PG-11 copper with nickel-coated
- PCB:
- Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Application environment:
- Temperature of water between -20ºC~40ºC less than 1 meter depth.
- Gasket:
- Silicone gasket
- Power Cable:
- H07RN-F 4X1.0mm2 L=3.0m
- Built-in Overheat Sensor System:
- Automatic Shutdown at 75°C
- Mounting Sleeve:
- ABS 039#
- CCT:
- RGB
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltge | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B4TL0618 | 6x2W RGB 3in1 | B48 | 30° | 24V DC | R=200 | G=250 | B=250 | 24V=16.8 | 465 | 08 |


IP68 WATERPROOF CONNECTORS
