RGB LIGHTS
RGB Lights - B2WDR0118 | B2WDS0118

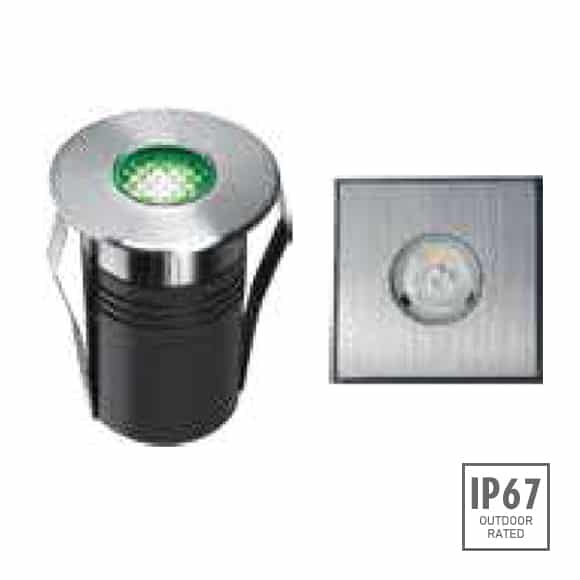

RGB Inground Light with optical lens, 3in1 LED, 7MM tempered glass, aluminium housing, IP67 application, stainless steel front cover. Competitively priced, high-quality products with wide range (30+ designs).
Premium quality RGB Inground lights for architectural lighting projects. Can be used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security, recreation for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: B2WDR0118 | B2WDS0118
- Housing:
- 12# die-casting grey powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
- Front Ring:
- Hard chromeplated Staines steel SUS 316#
- Light Window:
- Step tempered glass.T=7mm
- Glass pressure capacity:
- Full area=1704Kgs
- Gasket:
- Molding shaped silicone seal
- Lens:
- Optical lens.efficiency≥85%
- LED:
- SMD3535 RGB 3in1 LED
- Operating Temperature:
- -20ËšC~40ËšC
- Power Cable:
- H05RN-F 4X0.75mm2 L=0.5m
- Mounting Sleeve:
- ABS 011#
- CCT:
- RGB
TECHNICAL DATA
| Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| B2WDR0118 | 1x3W RGB 3in1 | B49 | 30° | 24V DC | R=48 | G=62 | B=62 | 24V=4.1 | 89 | 08 |
| B2WDS0118 | 1x3W RGB 3in1 | B49 | 30° | 24V DC | R=48 | G=62 | B=62 | 24V=4.1 | 89 | 08 |
