RGB LIGHTS

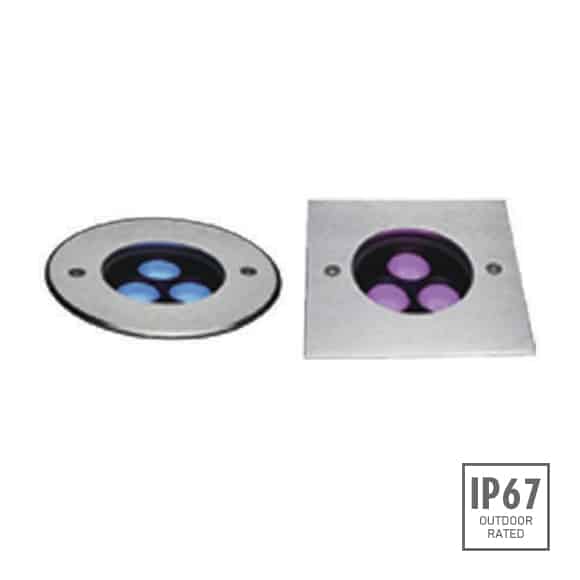

RGB Lights - FB2CDR0318 | FB2CDS0318
RGBW Recessed Inground Light with B49 symmetrical lens, SMD3535 3in1 LED, chromeplated steel cover, landscape lighting. Competitively priced, high-quality products with wide range (30+ designs).
These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment. Different beam angles for LED inground lights can be combined with LEDs to create infinite architectural and interior lighting solutions.
Some of the highlights are as follows:
Material Specifications: FB2CDR0318 | FB2CDS0318
- Housing:
- 12# die-casting grey powder coated aluminum. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
- Front Ring:
- Hard chromeplated Staines steel SUS 316L#
- Light Window:
- Step tempered glass.T=8mm
- Glass pressure capacity:
- Full area=2578Kgs
- Cable Gland:
- IP68 PG-9 PA66
- PCB:
- Excellent heat conductivity aluminum, coefficientof heat Conductivity≥2.0w/mk
- Lens:
- Optical lens.efficiency≥85%
- LED:
- SMD3535 RGB 3in1 LED
- Operating Temperature:
- -20˚C~40˚C
- Power Cable:
- H05RN-F 4X0.75mm2 L=0.5m
- Mounting Sleeve:
- ABS 015#
- CCT:
- RGB
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
FB2CDR0318 | 3x2W RGB 3in1 | B49 | 30° | 24V DC | R=64 | G=110 | B=110 | 24V=6.8 | 205 | 09 |
FB2CDS0318 | 3x2W RGB 3in1 | B49 | 30° | 24V DC | R=64 | G=110 | B=110 | 24V=6.8 | 205 | 09 |


IP68 WATERPROOF CONNECTORS
