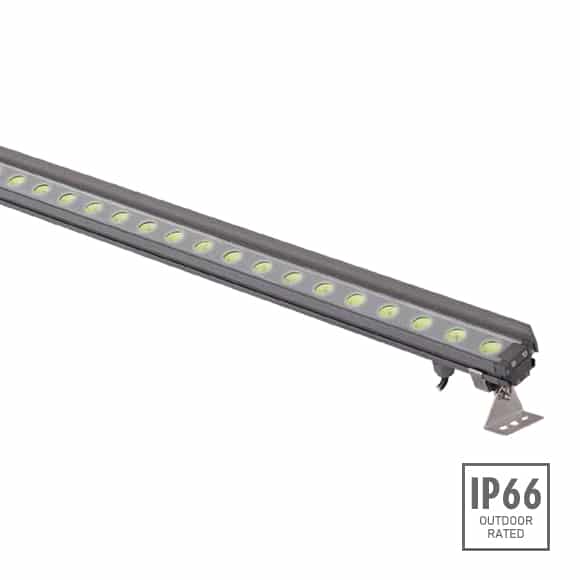

RGB Lights - B6R0605 | B6R1205 | B6R2405
RGB Linear Wall Washers with adjustable beam direction. Extruded aluminum housing, optional anti-glare reflector, fixture length options. Competitively priced, high-quality products with wide range (30+ designs).
Can be used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security and other special social events for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: B6R0605 | B6R1205 | B6R2405
- Housing:
- Extruded aluminum,powder coated
- Light Window:
- Step tempered glass.T=4mm
- Lens:
- Optical lens,efficiency≥85%
- LED:
- SMD3535 RGB 3 IN 1
- Cable Gland:
- IP68 PG-9 PA66
- Operating temperature:
- -20ºC~40ºC
- Built-in Overheat Sensor System:
- Automatic Shutdown at 75°C
- Bracket:
- Hard chromeplated stainless steel SUS 316L# T=1.5mm
- Power Cable:
- 2XH05RN-F 4X0.75mm2 L=0.5m
- CCT:
- RGB
TECHNICAL DATA
| Model Number | Light Source | Lens | Lens Degree | Length(MM) | Input Voltge | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| B6R0605 | 6x1.5W RGB 3in1 | B48 | 30° | 265 | 24V DC | R=120 | G=148 | B=145 | 24V=10 | 313 | 02 |
| B6R1205 | 12x1.5W RGB 3in1 | B48 | 30° | 510 | 24V DC | R=275 | G=302 | B=303 | 24V=21 | 629 | 02 |
| B6R2405 | 24x1.5W RGB 3in1 | B48 | 30° | 985 | 24V DC | R=537 | G=606 | B=602 | 24V=42 | 1270 | 02 |
IP68 WATERPROOF CONNECTORS
