SWIMMING POOL LIGHTS



Swimming Pool Lights - R4ZH0129
High-grade swimming pool lights for underwater application projects worldwide. The entire swimming pool lights are made of SS316 material to make it rust or corrosion free. High powered LED chips are used as light source in these fixtures. Stainless steel housing with 10mm step tempered glass. Standard color temperature and beam angles for swimming pool lights are 3000K and 6000K with asymmetric lens of 49º*46º. Wattages start 2W upwards to 45W.
These lights come with an ingress protection of IP68. Offer Triac, PWM, 1-10V & Dali dimming options. Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. Lighting Designers & Architects use these fixtures to create fabulous nighttime aesthetics, illumination of pool walls, walkways, floor etc.
Some of the highlights are as follows:
Material Specifications: R4ZH0129
- Front cover & Housing:
- Hard Chromeplated Molding Shaped SUS 316L#
- Light Window:
- Step Tempered glass. T=10mm
- Gasket:
- Silicon Gasket
- Reflector:
- Optical Reflector, efficiency ≥90%
- LED:
- COB LED
- LED Driver:
- Constant Voltage Input, Constant Current Output
- Power Cable:
- H07RN-F 2X1.0mm2 L=3.0m (for single color)
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 3000K/6000K
- Mounting Sleeve:
- ABS 060#
TECHNICAL DATA

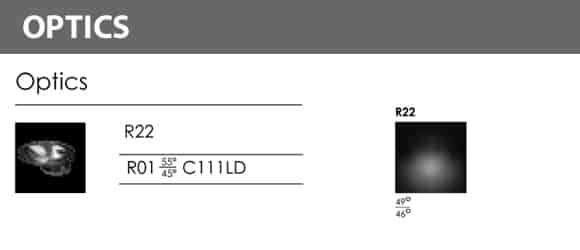

Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
R4ZH0129 | 1x12W | R22 | 49⁰*46⁰ | 24V DC | 24V=520 | 24V=12.5 | 1194 | 08 |


IP68 WATERPROOF CONNECTORS
