Submersible LED Lights

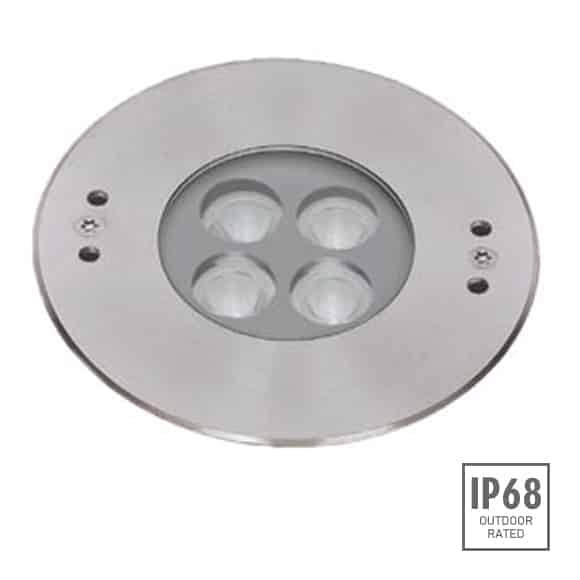

Submersible LED Lights - B4XC0457

Submersible LED lights for water resorts and luxury homes. Applications include submersible lights for pools and underwater wall lighting. Stainless steel housing with 4mm step tempered glass. Standard color temperature and beam angles for swimming pool lights are 2000K, 3000K and 6000K with lens 20º, 25º, 30º, 35º & 45º. Wattages start 2W upwards to 45W.

The underwater fixtures can also be provided with RGB/W color changing LED with DMX control systems. Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. In addition to pool lights, you may also want to consider installing some landscape lighting for your luxury homes. This will help make sure getting to the pool is just as safe as getting into it. Lighting designers & architects use these fixtures to create fabulous nighttime aesthetics and illumination of pool walls etc.

Compare us with the best manufacturer before buying our outdoor LED lighting products

A free installation guide is provided with each product

Check out the fascinating designs, quality, and prices

Click the box below to download individual product ecatalog and check out other products of your choice

Some of the highlights are as follows:

Material Specifications B4XC0457

Front cover & Housing:

Hard Chromeplated Molding Shaped Stainless Steel SUS 316#

Light Window:

Step Tempered glass. T=8mm

Gasket:

Silicon Gasket

LED Driver:

Constant Voltage Input, Constant Current Output

PCB:

Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk

Power Cable:

24V : H07RN-F 2X1.0mm2 L=3.0m

Application Environment:

Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth

CCT:

2000K/3000K/6000K

Dimmable Support:

Triac PWM 1-10V Dali

TECHNICAL DATA

Model#	Light Source	LENS	Lens Degree	Input Voltage	Operating Current(MA)	Consumption (W)	Lumance (LM)	IK
B4XC0457	4x2W	B32	30⁰	24V DC	24V=371	24V=8.9	Cool White=467 \| Warm White=415	08

IP68 WATERPROOF CONNECTORS

PRODUCT CATALOG

SIMILAR PRODUCTS

Submersible LED lights

Submersible LED lights for water resorts and luxury homes. Applications include submersible lights for pools and underwater wall lighting. Symmetrical LED pool light is a complete necessity when it comes to any pool installation. From safety, to practicality, to pure enjoyment, they are sure to make any backyard swim a memorable and long-lasting experience.

Submersible lights for pools and underwater lighting projects worldwide. Stainless steel body also makes them rust or corrosion free. Standard color temperature and beam angles for swimming pool lights are 2000K, 3000K and 6000K with lens 9º, 15º, 20º, 30º, 45º and 60º. The underwater fixtures can also be provided with RGB/W color changing LED with DMX control systems.

Underwater wall lighting fixtures come with an ingress protection of IP68. Also available in Triac, PWM, 1-10V & Dali dimming options. These waterproof lights also make them more attractive and help in achieving multi-color ambient light. Swimming pool lights also add beauty to the pool. Swimming pool lights with asymmetric lenses installed in the wall and buried in the ground will give a wall washing effect inside pools and water bodies. Color changing lights can create light shows and textures for architectural lighting elements. Water resorts majorly use these lighting fixtures as they have different sections. Each of them sets a different mood for which lighting is an essential element.

In addition to pool lights, you may also want to consider installing some landscape lighting for your luxury homes. This will help make sure getting to the pool is just as safe as getting into it. If you’re looking for a light that will last, our pool lights for above ground pools are a perfect solution. They have an LED lifespan of 50,000 hours. You’ll be able to enjoy your lights around the pool elegantly lit for many evenings to come without worrying about the cost of electricity.
