Underwater LED Lights

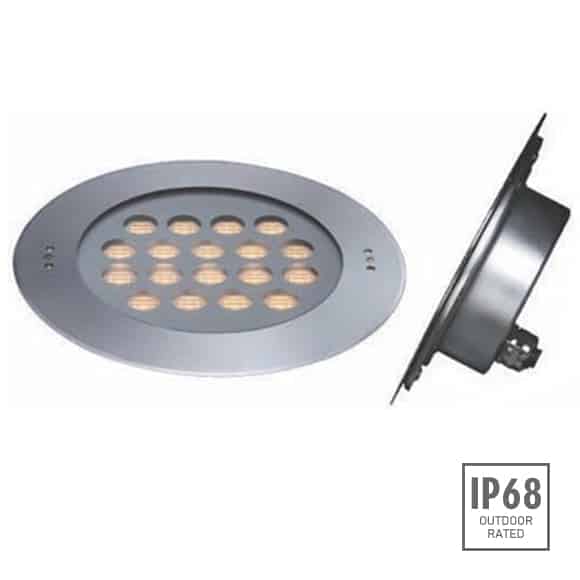

Underwater LED Lights - C4FB1857
Underwater LED lights for high-end water light shows. RGB color option with Triac/PWM dimming for waterpark lighting projects. Standard color temperature and beam angles for swimming pool lights are 2000K, 3000K and 6000K with asymmetrical lens of 45º*35º. Wattages start 2W upwards to 45W. They are also available in RGB color option with Triac/PWM dimming support for high-end underwater lighting projects.
Pool lights are a complete necessity when it comes to any pool installation. From safety, to practicality, to pure enjoyment, they will certainly make any backyard swim a memorable and long-lasting experience. Premium components also ensure that the fixture is of high quality. With our wide selection of swimming pool lights, you’re sure to find the perfect fit for your needs.
Some of the highlights are as follows:
Material Specifications C4FB1857
- Front cover & Housing:
- Molded Shaped Hard Cromeplated Stainless Steel SUS 316L#
- Light Window:
- Step Tempered glass. T=10mm
- Gasket:
- Silicon Gasket
- Lens:
- Optical Lens, efficiency ≥85%
- LED Driver:
- Constant Voltage Input, Constant Current Output
- PCB:
- Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
- Power Cable:
- 24V : H07RN-F 2X1.0mm2 L=3.0m
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| C4FB1857 | 18x2W | C8 | 45⁰*35⁰ | 24V DC | 24V=1900 | 24V=45.6 | Cool White=2532 | Warm White=2114 | 10 |
IP68 WATERPROOF CONNECTORS
Underwater LED lights
Underwater LED lights for high-end water light shows. RGB color option with Triac/PWM dimming for waterpark lighting projects. They come with a variety of beam angles with stainless steel housing and 7mm step tempered glass. These Swimming Pool lights come with an ingress protection of IP68.
Asymmetrical Recessed Pool Lights is one of the majorly used types of pool lighting used by Lighting designers & architects to create fabulous nighttime aesthetics, accessibility, security, recreation, sport, and other special social events for private gardens, public landscapes, illumination of swimming pool walls & floor lighting. They are also available in RGB color option with Triac/PWM dimming support for high-end water light shows.
CCT of 2000k/3000k & 6000k with Triac, PWM ,1-10V & Dali dimming options. Lighting Designers & Architects use these fixtures to create fabulous nighttime aesthetics, Illumination of pool walls, floor etc. Swimming pool light illuminates the pool area and also covers dark areas. The temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth is applicable for this light.
Pool lights are a complete necessity when it comes to any pool installation. From safety, to practicality, to pure enjoyment, they will certainly make any backyard swim a memorable and long-lasting experience. Premium components also ensure that the fixture is of high quality. With our wide selection of swimming pool lights, you’re sure to find the perfect fit for your needs.
Choose from our range of pond lighting fixtures for your waterpark lighting projects.
