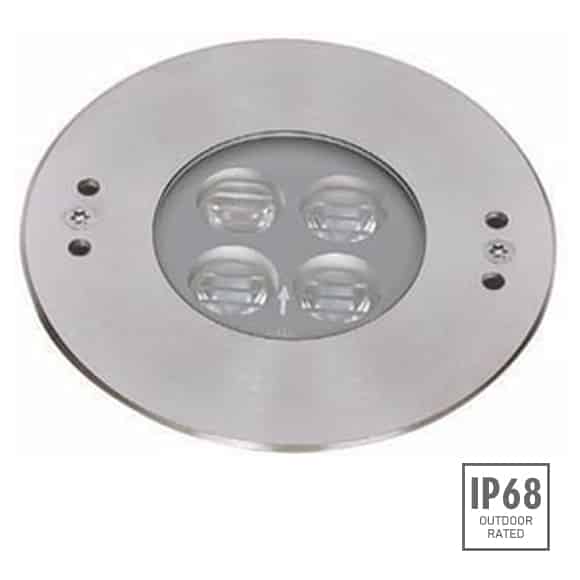

Submersible LED Pool Light
Submersible LED Pool Light - C4XC0457
Submersible LED pool light with SUS 316# steel housing for fish pond lights, marine lighting and color changing submersible lights. Swimming pool lights are a complete necessity when it comes to any pool installation. From safety, to practicality, to pure enjoyment, they are sure to make any backyard swim a memorable and long-lasting experience. Standard color temperature and beam angles for swimming pool lights are 2000K, 3000K and 6000K.
In addition to color changing submersible lights, you may also want to consider installing some landscape lighting. This will help make sure getting to the pool is just as safe as getting into it. These lights come with an ingress protection of IP68. Offer Triac, PWM, 1-10V & Dali dimming options. Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. Lighting designers & architects use these fixtures to create fabulous nighttime aesthetics and illumination of pool walls.
Some of the highlights are as follows:
Material Specifications C4XC0457
- Front cover & Housing:
- Hard Chromeplated Molding Shaped Stainless Steel SUS 316#
- Light Window:
- Step Tempered glass. T=8mm
- Gasket:
- Silicon Gasket
- LED Driver:
- Constant Voltage Input, Constant Current Output
- PCB:
- Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
- Power Cable:
- 24V : H07RN-F 2X1.0mm2 L=3.0m
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| C4XC0457 | 4x2W | C8 | 45⁰*35⁰ | 24V DC | 24V=371 | 24V=8.9 | Cool White=511 | Warm White=450 | 08 |
IP68 WATERPROOF CONNECTORS
Submersible LED pool light
Submersible LED pool light with SUS 316# steel housing for fish pond lights, marine lighting and color changing submersible lights. Wall recessed pool light reduces the maintenance costs and also has a longer lifespan. These inground pool lights can also provide greater safety for folks in and out of the swimming pool. Outdoor pool lights are also important as they can add a visual impact to the pool landscape.
One can achieve multi-color ambient light with the help of RGB color changing LEDs. If you’re looking for a way to add some color and light to your underwater space, RGB/W LED pool lights are a great option. With their stylish design and high quality construction, they’re a great choice for any lighting designer or architect for marine lighting projects.
These swimming pool light fittings are available in a variety of wattages and beam angles. In addition to creating an amazing mood, pool lighting also makes the area much safer. So if you’re looking for a way to take your pool game up a notch, consider investing in some LED pool lights. Surface mounted lighting is one of the most popular types of pool lighting. It is installed on the side of the pool and gives off a lot of light. This makes it ideal for highlighting pool features. Water feature lights are also easy to install in concrete, fiberglass and vinyl pools.
