Landscape Wall Wash Lights

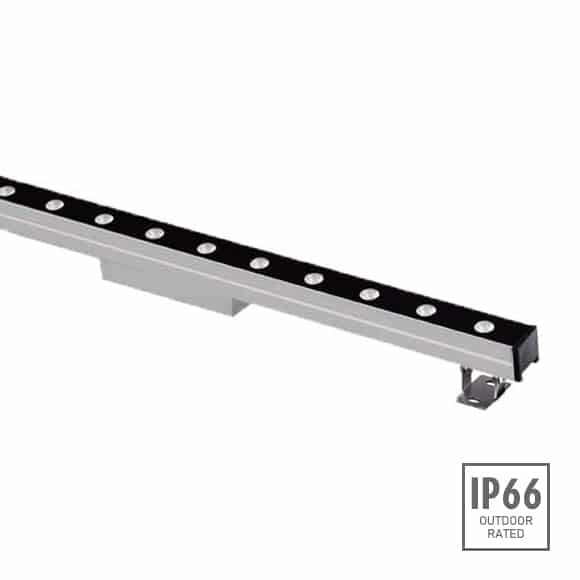

Wall Washer - B6JC1256 | B6JC2456
Landscape wall wash lights for residential real estate. Anti-corrosion body with anti-glare louver for LED linear lighting systems. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork. Wattage start from 6W to maximum of 48W with beam angle of 30 & 40 degree.
Adjustable clamps and accessories are SS316 to protect the fixture from corrosion. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. These fixtures are also available in RGB/RGBW/mono color and can light up historic monuments and government buildings. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications B6JC1256 | B6JC2456
- Housing:
- Extruded aluminium anodized finishing or Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Tempered glass T=3mm
- Gasket:
- Glass and housing are silicon sealed
- LED:
- OSRAM
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- Hard crome plated stainless Steel SUS 304#
- Power Cable:
- H03VV-F 3X0.1mm2 L=0.5m
- CCT:
- 2000K/3000K/6000K
TECHNICAL DATA

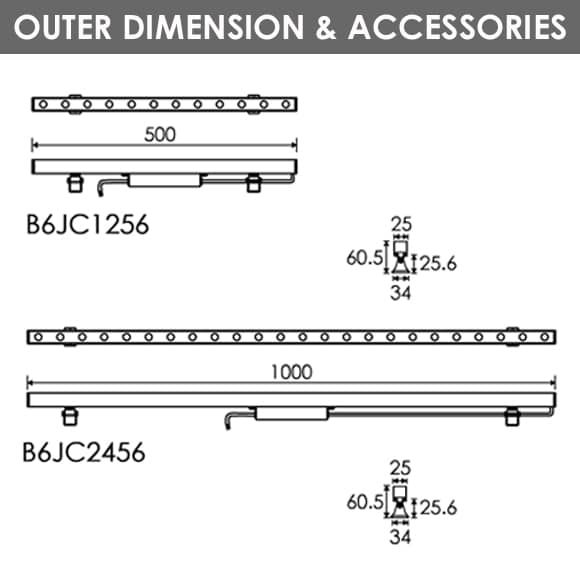

Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
B6JC1256 | 12x1W | B38 | 30⁰ | 500 | 120 | 240V | 120V=130 | 240V=65 | 120V=15 | 240V=15 | Cool White = 1080 | Warm White = 864 | 02 |
B6JC2456 | 24x1W | B38 | 30⁰ | 1000 | 120 | 240 | 120V=295 | 240V=163 | 120V=35 | 240V=35 | Cool White =2140 | Warm White = 1976 | 02 |
IP68 WATERPROOF CONNECTORS
Landscape wall wash lights
Landscape wall wash lights for residential real estate. Anti-corrosion body with anti-glare louver for LED linear lighting systems. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork.
There are a few things to keep in mind if you’re considering using outdoor wall washers. First, you’ll need to decide what type of fixture you want. There are two main types of wall washers: linear and grazing. Linear wall washers are designed to evenly illuminate a large area, while grazing fixtures create more of a “spotlight” effect. Wall washers evenly light up large areas and also enhance the architecture.
The most popular reason to use an outdoor LED wall washer is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. These fixtures are also available in RGB/RGBW/mono color and can light up historic monuments and government buildings.
If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor wall washers. These fixtures also add a touch of drama and help in highlighting the architecture of your home.
