Linear Light Fixtures

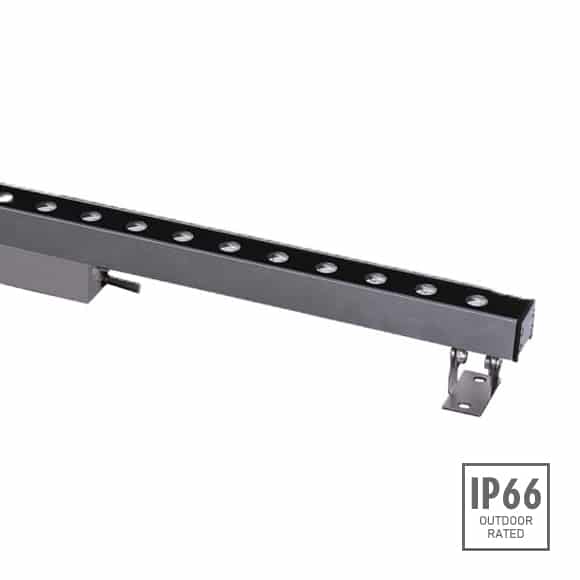

Linear Light Fixtures - B6KC1257 | B6KC2457
Linear light fixtures for luxury cottages and hotels. Applications include luxury mansion, fancy hotels and wall wash lighting system. Dedicated manufacturers of LED Focus lights & Spotlights for architectural outdoor lighting, garden & landscape. Wall washer are slim lights with different wattages, beam angles and color temperatures. Wattage start from 6W to maximum of 48W with beam angle of 15, 20, 30 & 50 degree.
Spacing between the wall washer and the surface helps to determine the level of brightness. Placing the fixture closer to the wall will also give a focused and bright effect. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications B6KC1257 | B6KC2457
- Housing:
- Extruded aluminium anodized finishing or Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Step Tempered glass T=4mm
- Cable gland:
- IP68 PG-9 PA66
- Gasket:
- Glass and housing are silicon sealed
- LED:
- OSRAM
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- Hard crome plated stainless Steel SUS 304#
- Power Cable:
- H07RN-F 2X1.0mm2 L=0.5m(low voltage)
- 2000K/3000K/6000K
TECHNICAL DATA

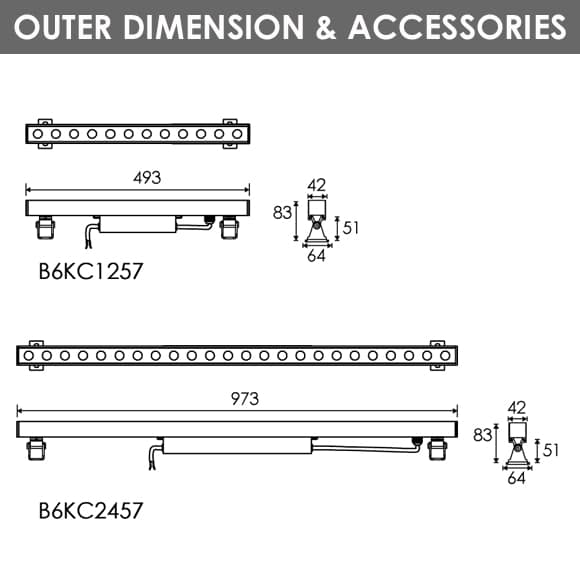

Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
B6KC1257 | 12x1.5W | B17 | 20⁰ | 493 | 120 | 240 | 120V=203 | 240V=109 | 120V=24.4 | 240V=25.2 | Cool White = 1637 | Warm White = 1392 | 05 |
B6KC2457 | 24x1.5W | B17 | 20⁰ | 973 | 120 | 240 | 120V=141 | 240V=212 | 120V=48 | 240V=48.3 | Cool White =3270 | Warm White = 2780 | 05 |
IP68 WATERPROOF CONNECTORS
Linear light fixtures
Linear light fixtures for luxury cottages and hotels. Applications include luxury mansion, fancy hotels and wall wash lighting system. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork.
There are a few things to keep in mind if you’re considering using outdoor wall washers. First, you’ll need to decide what type of fixture you want. There are two main types of wall washers: linear and grazing. Linear wall washers evenly illuminate a large area, while grazing fixtures create more of a “spotlight” effect. Wall washers evenly light up large areas and also enhance the architecture.
The most popular reason to use an outdoor LED wall washer is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. These fixtures are also available in RGB/RGBW/mono color and can light up luxury cottages and hotels. Exterior facade lighting for a luxury mansion is possible with this wall wash lighting system.
