DRIVE OVER LIGHTS

Drive Over Lights - 1E2XA0157 - Image
Drive Over Lights - 1E2XA0157 - Dia

Product Certification

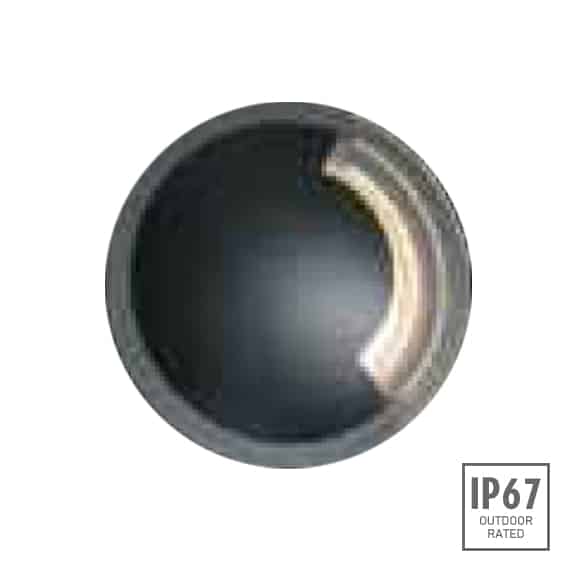

Drive Over Lights - 1E2XA0157


Drive over light with powder coated aluminium housing. 30+ models, IP67 outdoor protection, 1x2W LED, Guaranteed for 3-5 yrs. The housing is made by Die-casting powder coated aluminum in dark grey color. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Stainless steel SUS 316# front cover. Standard color temperature for drive over lights are 2000K, 3000K and 6000K.

  • Compare us with the best manufacturer before you buy our outdoor LED lighting
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

    • Some of the highlights are as follows:

    Material Specifications: 1E2XA0157


    Housing:
    12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Front Cover:
    Hard chromeplated stainless steel SUS 316#
    Load Capacity:
    >2000kg
    Gasket:
    Molding shaped silicone seal
    Operating Temperature:
    -20ËšC~40ËšC
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m

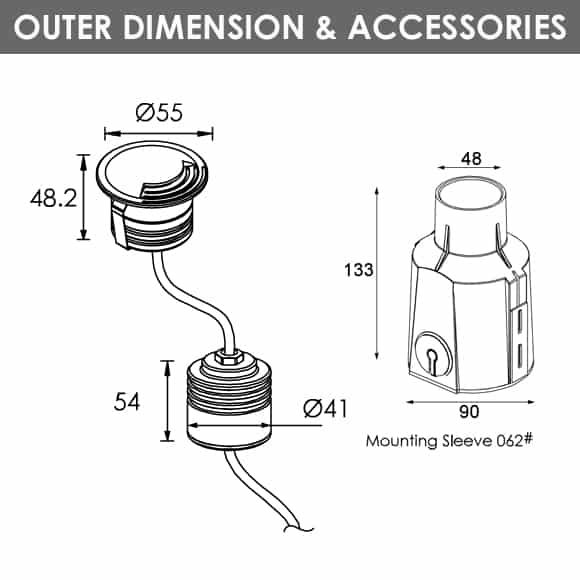

    Mounting Sleeve:
    ABS 062#
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model NumberLight SourceInput VoltgeOperating Current(MA)Consumption (W)Luminance(LM)IK
    1E2XA01571x2W24V DC | 120 | 24024V=108 | 120V=47 | 240V=2824V=2.5 | 120V=3 | 240V=3Cool White = 1.5 | Warm White = 1.310

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
