DRIVE OVER LIGHTS

Drive Over Lights - 1E2BFS0617 - Image
Drive Over Lights - 1E2BFS0617 - Dia

Product Certification

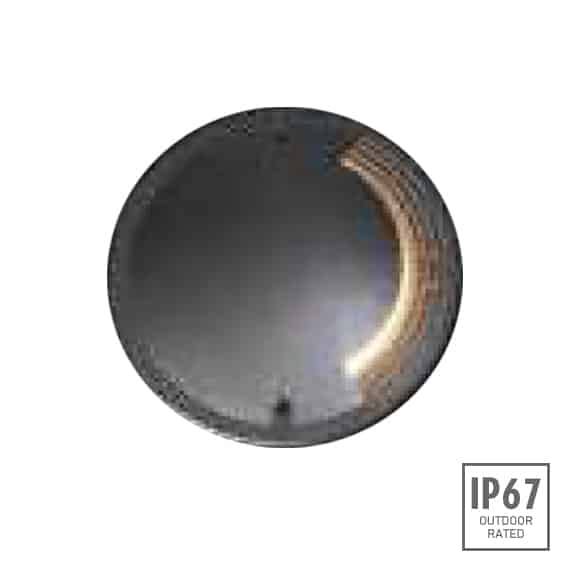

Drive Over Lights - 1E2BFS0617


Drive over LED lights, Outdoor LED floor lights. Stylish, high-quality, product certifications, Over 50 models IP68, Guaranteed for 3-5 yrs. The housing is made by Die-casting powder coated aluminum in dark grey color. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Stainless steel SUS 316# front cover. Standard color temperature for drive over lights are 2000K, 3000K and 6000K.

  • Compare us with the best manufacturer before you buy our outdoor LED lighting
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

    • Some of the highlights are as follows:

    Material Specifications: 1E2BFS0617


    Housing:
    12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Front Cover:
    Hard chromeplated stainless steel SUS 316#
    Load Capacity:
    >2000kg
    Cable Gland:
    IP68 PG-9 PA66
    Gasket:
    Molding shaped silicone seal
    LED Driver:
    Constant Voltage Input,Constant Current Output
    Operating Temperature:
    -20ËšC~40ËšC
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
    Mounting Sleeve:
    ABS 016#
    Dimmable Support:
    Triac PWM 1-10V Dali
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model NumberLight SourceInput VoltgeOperating Current(MA)Consumption (W)IK
    1E2BFS0617SMD3030 6×0.5W24V DC | 120 | 24024V=124 | 120V=57 | 240V=3324V=2.9 | 120V=3.9 | 240V=410

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
