DRIVE OVER LIGHTS

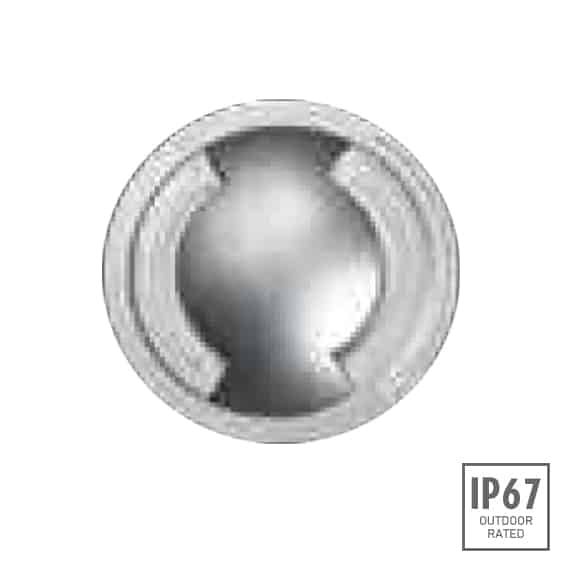

2E2WC0157 A - Image

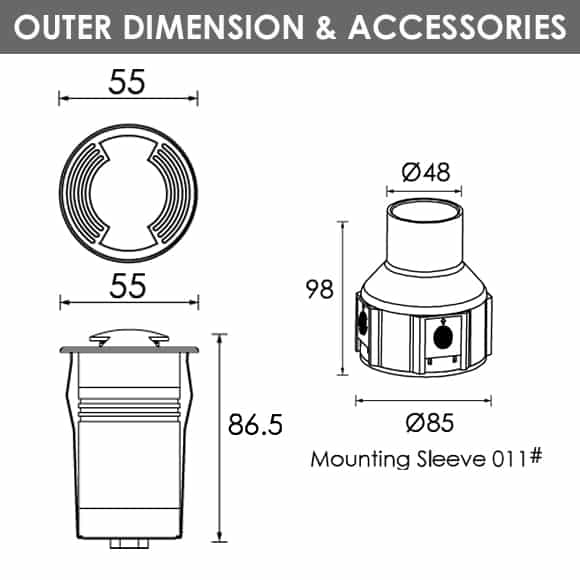

2E2WC0157 A - Dia

Product Certification

Drive Over Lights - 2E2WC0157 A


Double side drive over lights with 2W power. 55MM dia, powder coated colors, aluminium body, rust free SS cover. Material of these fixtures are robust and are made of die-cast aluminium body with powder coated colors. Front cover of the light is of high-grade stainless steel 316 to make it rust or corrosion free.
Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K. Wattages are low starting at 0.8W with maximum 4W. Drive-over lights are with IK10 and IP67 rating.

  • Compare us with the best manufacture before you buy our LED outdoor Lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

    • Some of the highlights are as follows:

    Material Specifications: 2E2WC0157 A


    Housing:
    12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Front Cover:
    Hard chromeplated stainless steel SUS 316#
    Load Capacity:
    >2000kg
    Gasket:
    Molding shaped silicone seal
    Operating Temperature:
    -20ËšC~40ËšC
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
    Mounting Sleeve:
    ABS 011#
    Dimmable Support:
    Triac PWM 1-10V Dali
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model NumberLight SourceInput VoltgeOperating Current(MA)Consumption (W)Luminance(LM)IK
    2E2WC0157 A1x2W24V DC | 120 | 24024V=110 | 120V=48 | 240V=2824V=2.6 | 120V=3.1 | 240V=3Cool White = 2.0 | Warm White = 1.710

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
