DRIVE OVER LIGHTS

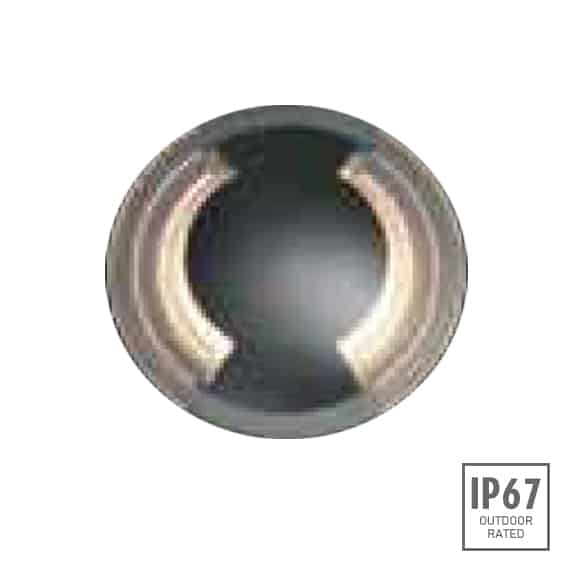

Drive Over Lights - 2E2XA0154
Outdoor Recessed Drive Over Lights with ABS 062# mounting sleeve. Powder coated fixture, stainless steel cover, double side. Material of these fixtures are robust and are made of die-cast aluminium body with powder coated colors. Front cover of the light is of high-grade stainless steel 316 to make it rust or corrosion free.
Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K. Wattages are low starting at 0.8W with maximum 4W. Drive-over lights are with IK10 and IP67 rating. Outdoor LED drive over lights change the ambience of the area.
Some of the highlights are as follows:
Material Specifications: 2E2XA0154
- Housing:
- 12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
- Front Cover:
- Hard chromeplated stainless steel SUS 316#
- Load Capacity:
- >2000kg
- Gasket:
- Molding shaped silicone seal
- Operating Temperature:
- -20˚C~40˚C
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m
- Mounting Sleeve:
- ABS 062#
- Dimmable Support:
- Triac PWM 1-10V Dali
- CCT:
- 2000K/3000K/6000K
TECHNICAL DATA
| Model Number | Light Source | Input Voltge | Operating Current(MA) | Consumption (W) | Luminance(LM) | IK |
|---|---|---|---|---|---|---|
| 2E2XA0154 | 1x2W | 24V DC | 24V=110 | 24V=2.6 | Cool White = 2 | Warm White = 1.7 | 10 |
IP68 WATERPROOF CONNECTORS
Modern pathway lights with ABS 062# mounting sleeve. Powder coated fixture, stainless steel cover, double side. Material of these fixtures are robust and are made of die-cast aluminium body with powder coated colors. Front cover of the light is of high-grade stainless steel 316 to make it rust or corrosion free. Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K. Wattages are low starting at 0.8W with maximum 4W. Drive-over lights are with IK10 and IP67 rating. Outdoor LED drive over lights change the ambience of the area.
Check out our range of outdoor lights for architectural lighting solutions: Outdoor LED Lighting
With a variety of color temperatures available, you can find the perfect light to suit your needs. Outdoor Recessed Driveover products come with BIS certification. Modern pathway lights walkover lights are often used in parking lots and walkways and can act as a guide light at night. These are strong, rust & corrosion-proof fixtures with a compact design which will give a modern look to your exteriors. The fitting is IP67 rated, giving it protection from rain and projected water.
Modern pathway lights Recessed Driveover fixtures are available in a variety of wattages, colors, and styles to suit any need. Made from durable materials, they’re built to last. They have a high glass pressure capacity and can withstand extreme temperatures. Standard color temperatures of 2000K/3000K/3500K/4000K/5000K & 6000K are available. Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005.
Outdoor Recessed Driveover driveway lights come with Triac, PWM, 1-10V & Dali dimming support with an option of in-built drivers to suit any project needs. Available in over 20+ designs, these are high quality fixtures with wattages starting from 0.8W to a maximum of 4W. These fixtures emit light in single, double and quadragural sides and a combination of these can be used to light up pavements or parking lots.
Modern pathway lights walkover LED fixtures are widely used in high-end landscape & garden lighting projects. They can take upto 2 tons of load and have a long LED lifespan due to the high-grade LEDs being used. Modern pathway lights – Trees and shrubs can also be highlighted using Modern pathway lights fixtures.
