Pathfinder Lights



Pathfinder Lights 2E2BFS2009

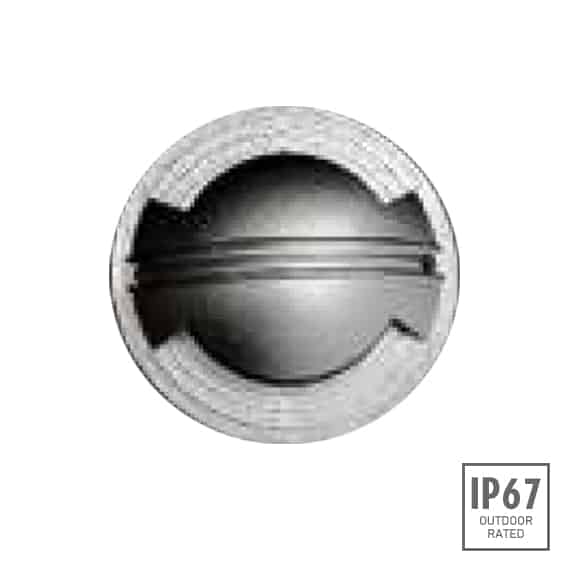

Pathfinder lights for parking lots, recessed pathway lights, exterior walkway lights and driveway entrance gate lights. Material of these fixtures are robust and are made of die-cast aluminium with powder coated colors. Front cover of the light is of high-grade stainless steel 316 to make it rust or corrosion free. These lights come with high glass pressure of Ik10 & IP67 rating.

Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K. These are 2W drive over light with wattages starting as low as 0.8W with maximum 4W. Dark grey fixture with 20xΦ5 LED, color temperature options and double sided light emission. These walkover lights are also applicable in parking lots and walkways and can act as a guide light at night.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

  • Some of the highlights are as follows:

    Material Specifications 2E2BFS2009


    Housing:
    12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Front Cover:
    Hard chromeplated stainless steel SUS 316#
    Load Capacity:
    >2000kg
    Cable Gland:
    IP68 PG-9 PA66
    Gasket:
    Molding shaped silicone seal
    LED Driver:
    Constant Voltage Input,Constant Current Output
    Operating Temperature:
    -20˚C~40˚C
    Power Cable:
    H07RN-F 2X1.0mm2 L=0.5m(low voltage) H07RN-F 3X1.0mm2 L=0.5m(high voltage)

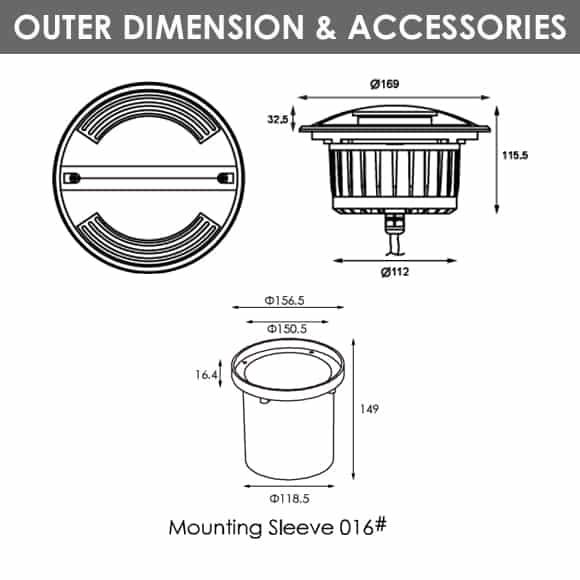

    Mounting Sleeve:
    ABS 016#
    Dimmable Support:
    Triac PWM 1-10V Dali
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model NumberLight SourceInput VoltgeOperating Current(MA)Consumption (W)IK
    2E2BFS200920xΦ5 LED24V DC | 120 | 24024V=68 | 120V=36 | 240V=2124V=1.6 | 120V=2.1 | 240V=2.110

    IP68 WATERPROOF CONNECTORS

    Pathfinder lights

    Pathfinder lights for parking lots, recessed pathway lights, exterior walkway lights and driveway entrance gate lights. Material of these fixtures are robust and are made of die-cast aluminium with powder coated colors. Front cover of the light is of high-grade stainless steel 316 to make it rust or corrosion free. These lights come with high glass pressure of Ik10 & IP67 rating.

    Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperatures for drive over lights are 2000K, 3000K and 6000K. These are 2W drive over light with wattages starting as low as 0.8W with maximum 4W. Dark grey fixture with 20xΦ5 LED, color temperature options and double sided light emission.

    Our selection of products also come with BIS certification. These walkover lights are also applicable in parking lots and walkways and can act as a guide light at night. These are strong, rust & corrosion-proof fixtures with a compact design which will also give a modern look to your exteriors. The fitting comes with IP67 rating, giving it protection from rain and projected water.

    Pathfinder lights recessed fixtures are available in a variety of wattages, colors, and styles to suit any need. They also have a high glass pressure capacity and can withstand extreme temperatures. Standard color temperatures of 2000K/3000K/3500K/4000K/5000K & 6000K are available. Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005.
    2W Drive Over Light comes with Triac, PWM, 1-10V & Dali dimming support with an option of in-built drivers to suit any project needs. Available in over 20+ designs, these are high quality fixtures with wattages starting from 0.8W to a maximum of 4W. These fixtures emit light in single, double and quadrangular sides and a combination of these can also be used as driveway entrance gate lights and parking lots.
    With SUS316 stainless steel front cover, recessed pathway lights are also corrosion proof. These pathway lights can also create amazing effects with dimming drivers. Architects use these exterior walkway lights in their world class inground lighting projects. These lights are also perfect for illuminating pathways, walkways, and other areas where you need a little extra light.
    Check out our range of outdoor lights for architectural lighting solutions.
